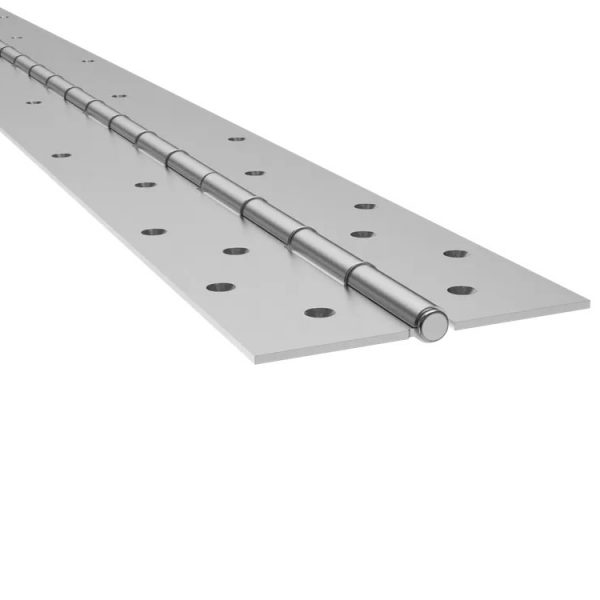

Markar FM3500 Extra Heavy Duty Full Mortise Stainless Steel Pin & Barrel Continuous Security Hinge

Usually Ships: 5-10 Business Days
  • Designed for correctional facilities and high-security locations
  • Ideal for use on prison doors, gates, extremely tall or heavy doors
  • Supports weights up to 900lbs

Available Options:

Markar FM3500 Full Mortise Edge Mounted Stainless Steel Pin & Barrel Continuous Hinge, Satin Stainless Steel

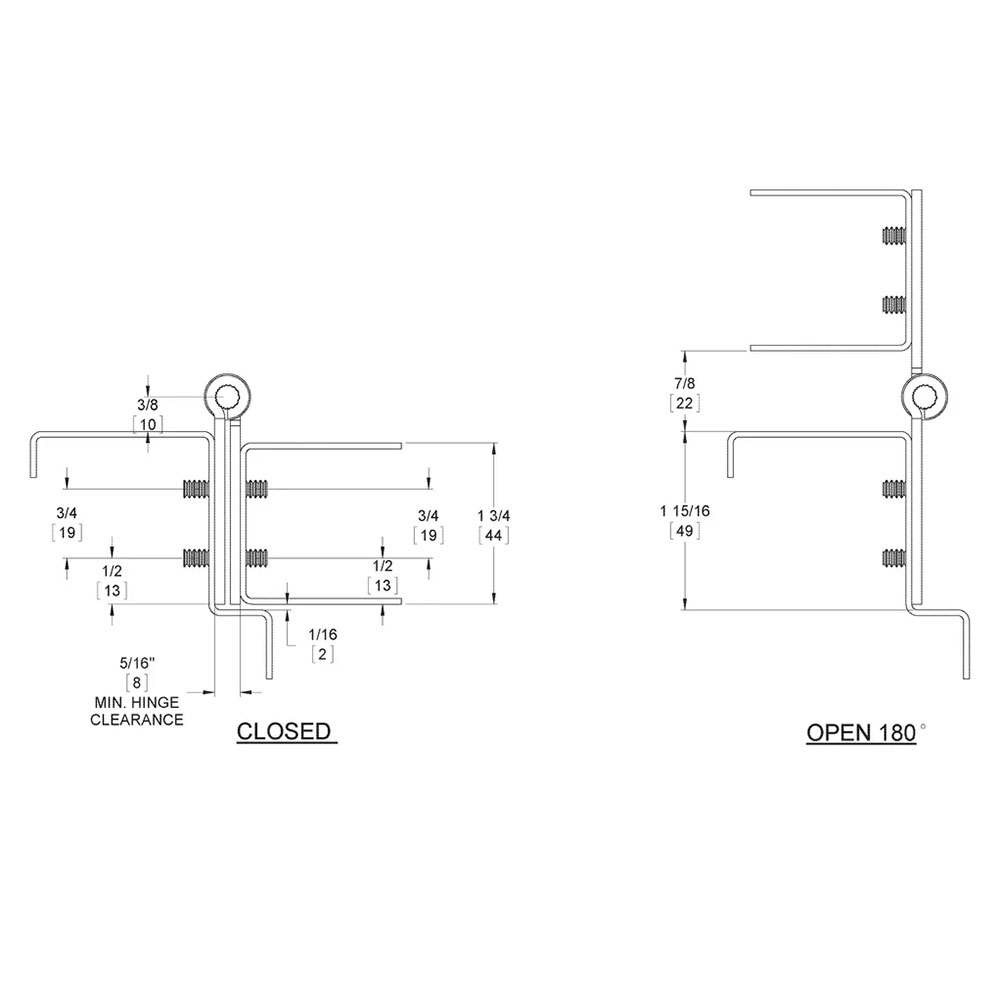

The 12 gauge Markar FM3500 Series Full Mortise Continuous Pin and Barrel Hinge is edge-mounted with a hospital tip that is fabricated with extra-heavy duty components for use on high traffic, high abuse doors. This hinge is specially designed and well suited for correctional facilities and other high security locations using 2″ thick swing-type doors.

Features

  • Ideal for use on prison doors, gates, extremely tall or heavy doors
  • Fabricated with extra-heavy duty components
  • For use on high traffic, high abuse doors
  • Supports weights up to 900 lbs., 4’0″ maximum door width
  • Well suited for correctional facilities and other high security locations
  • Fasteners are concealed when door is closed
  • Fastener screw pack includes Custom #12-24 x 7/16″ PFHMS U/C S.S.
  • Symmetrically templated hole pattern
  • Hinge reinforcements not required for 16 gauge (or heavier) hinges

Certifications

  • ANSI/SDI 250.13 Certified
  • ASTM E330 Certified
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ASTM E1996 Certified
  • ASTM E1886 Certified
  • Florida Building Code Approved TAS 201, 202, 203 (old)
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel

Material

304 Stainless Steel

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified

Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing

Continuous Hinge Type

Full Mortise (Concealed)

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
