Product Overview

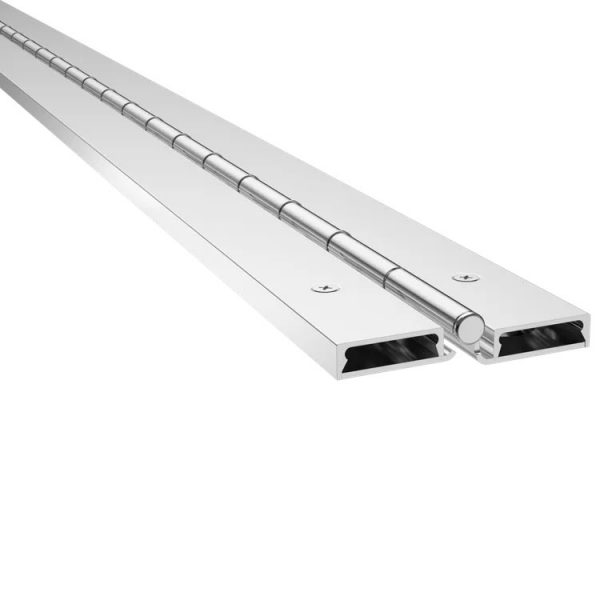

Markar FS301 Heavy Duty Full Surface 1/8″ Inset Pin & Barrel Continuous Hinge, Satin Stainless Steel

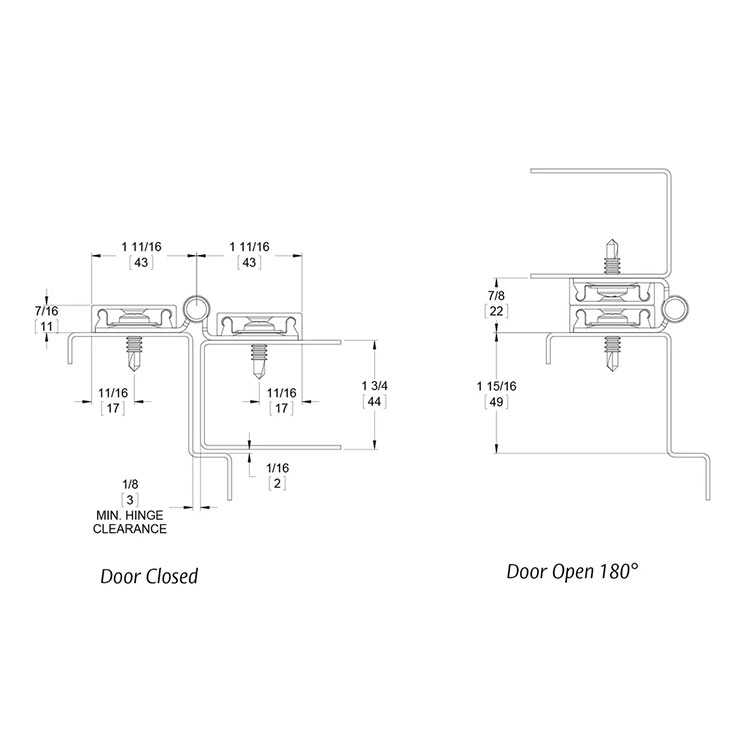

The Markar FS301 Series Full Surface Continuous Pin and Barrel Hinge can be used to repair both fire labeled and non-labeled doors that have very tight clearances. This hinge has a built-in 1/8″ offset to assist in weather seal and sound barrier areas.
Features
- Stainless steel end pins
- Fasteners concealed by covers
- Covers are extruded aluminum
Benefits
- Used to repair both fire labeled and non-labeled doors that have very tight clearances
- Built-in 1/8″ offset to assist in weather seal and sound barrier areas
- Fire ratings up to and including 3 hours
Certifications
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
- Warnock Hersey listing
- ANSI/BHMA Standard A156.26
| Brand | |
|---|---|
| Finish | Stainless Steel |
| Material | 304 Stainless Steel |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified |
| Fire Rating | UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing |
| Continuous Hinge Type | Full Surface |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
