Product Overview

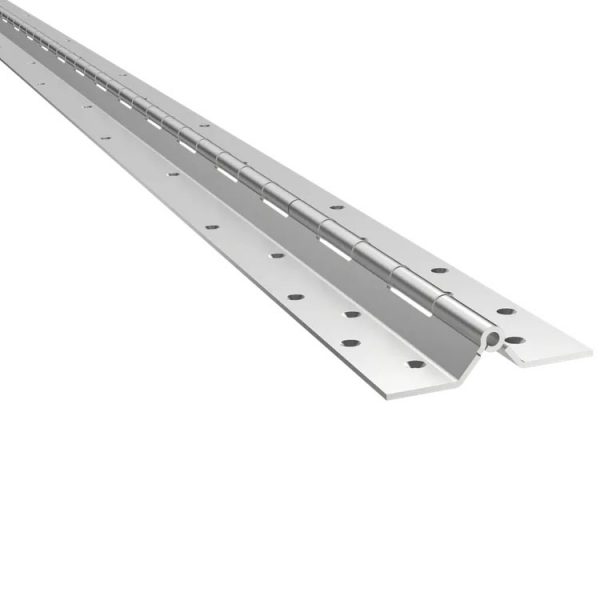

Markar FS3501 Extra Heavy Duty 1/8″ Inset Full Surface Stainless Steel Pin & Barrel Continuous Security Hinge, Satin Stainless Steel

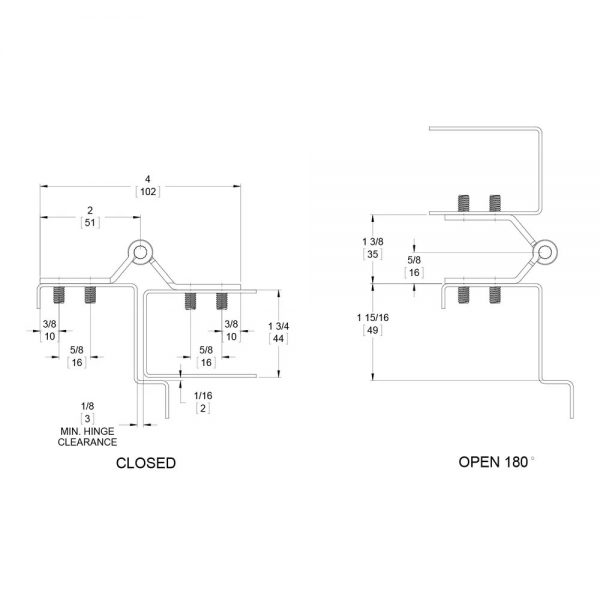

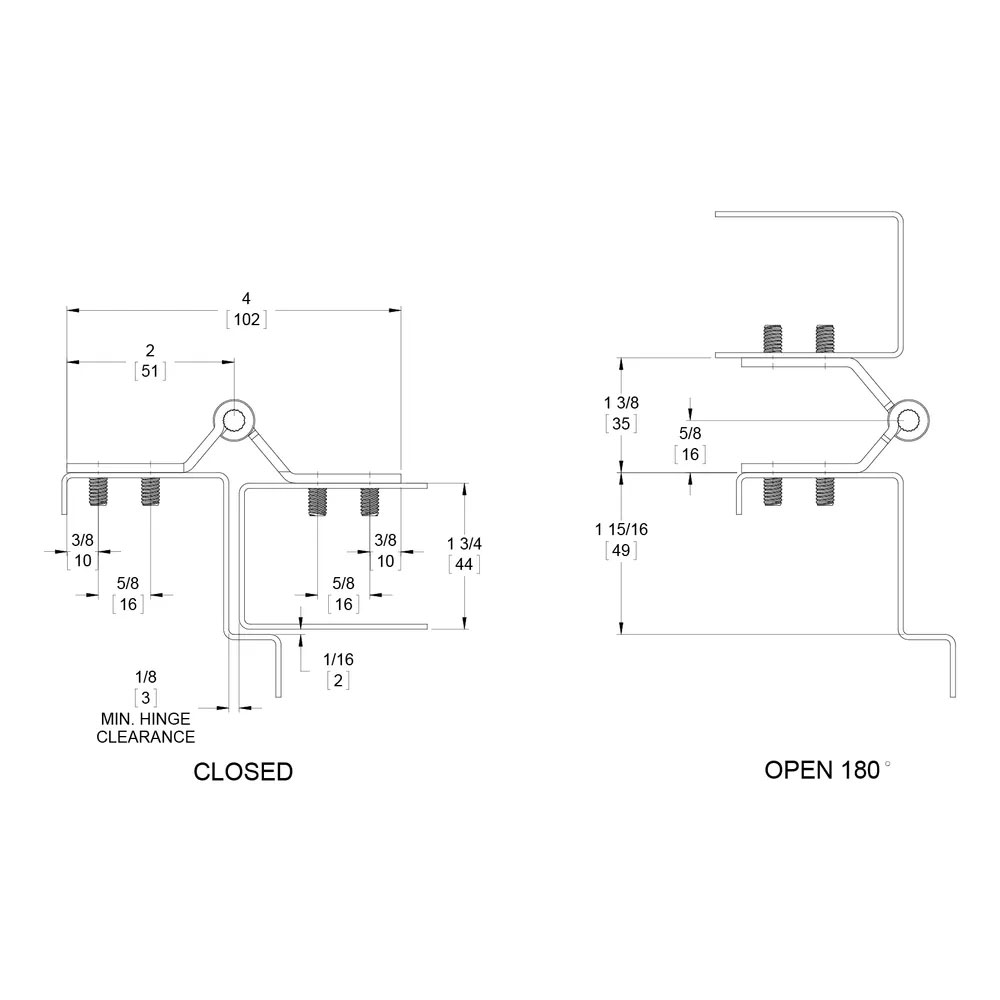

The 12 gauge Markar FS3501 Series Full Surface Continuous Pin and Barrel Hinge is for 1/8″ inset doors and allows for perfect alignment for the retrofitting of doors in correctional facilities and other high-security locations using 2″ thick swing-type doors.
Features
- Stainless steel end pins
- Hospital tip standard
- No exposed mounting fasteners when closed
- Supports weights up to 900 lbs., 4’0″ maximum door width
- Symmetrically templated hole pattern
- Hinge reinforcements are not required when installed on a 16 gauge (or heavier) metal frame
- Fastener screw pack includes Custom #12-24 x 7/16″PFHMS U/C S.S.
Benefits
- For 1/8″ inset doors
- Ideal for prison doors, gates, extremely tall doors, and extra heavy doors
- Allows for perfect alignment for the retrofitting of doors in correctional facilities and other high-security locations using 2″ thick swing-type doors
- Fire ratings up to and including 3 hours
Certifications
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
- Warnock Hersey listing
- ANSI/BHMA Standard A156.26
Brand | |
---|---|
Finish | Stainless Steel |
Material | 304 Stainless Steel |
Usage | Heavy Duty |
ANSI/BHMA Standard | ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified |
Fire Rating | UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing |
Continuous Hinge Type | Full Surface |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
