Markar FS3502 Extra Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Security Hinge

Usually Ships: 5-10 Business Days
  • Well suited for correctional facilities and other high-security locations
  • Ideal for use on prison doors, gates, extremely tall or heavy doors
  • Supports weights up to 900lbs

Available Options:

Markar FS3502 Extra Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Security Hinge, Satin Stainless Steel

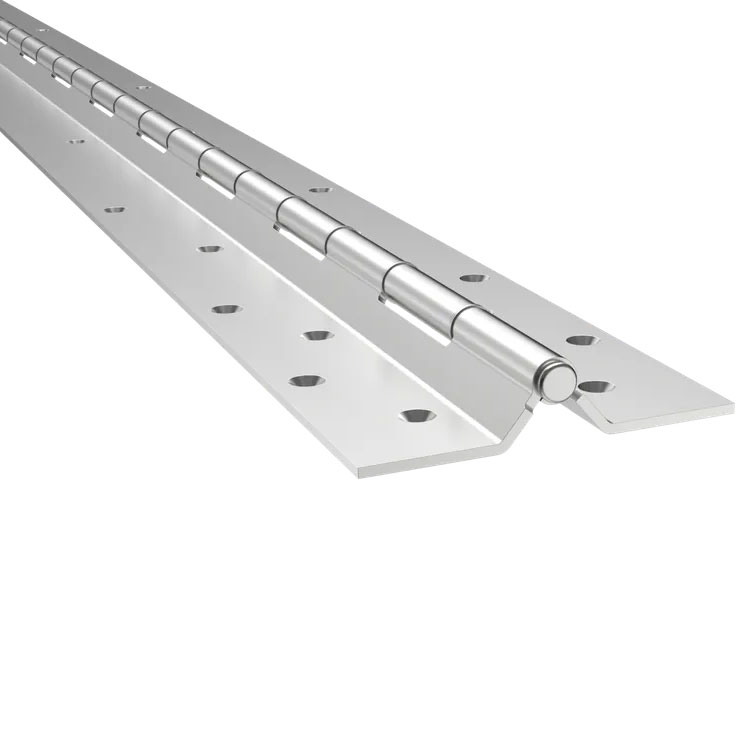

The 12 gauge Markar FS3502 Full Surface Continuous Pin and Barrel Hinge is well suited for correctional facilities and other high-security locations using 2″ thick swing-type doors. Prison doors, gates, extremely tall doors, and extra heavy doors are all ideal candidates for this hinge.

Features

  • Stainless steel end pins
  • Fastener screw pack includes custom #12-24 x 7/16″ PFHMS U/C S.S.
  • Hospital tip standard
  • No exposed mounting fasteners when closed
  • Supports weights up to 900 lbs., 4’0″ maximum door width
  • Symmetrically templated hole pattern
  • Hinge reinforcements are not required when installed on a 16 gauge (or heavier) metal frame

Benefits

  • Well suited for correctional facilities and other high security locations using 2″ thick swing type doors
  • Ideal for prison doors, gates, extremely tall doors and extra heavy doors
  • Fire ratings up to and including 3 hours

Certifications

  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel

Material

304 Stainless Steel

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified

Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing

Continuous Hinge Type

Full Surface

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
