Markar HG310 Hinge Guard, Stainless Steel Pin & Barrel Swing Clear Continuous Hinge

Usually Ships: 5-10 Business Days
  • Swings door out of opening when moving equipment in and out
  • Guard protects the door from dents and gouges
  • Supports weights up to 600lbs

Available Options:

Product Overview

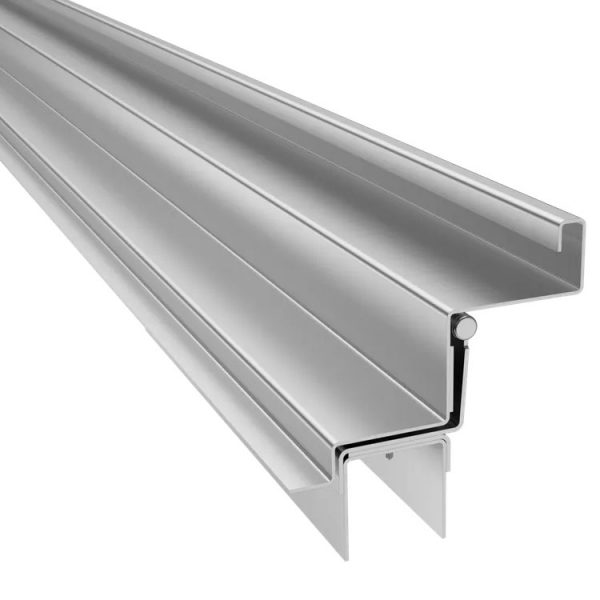

Markar HG310 Hinge Guard, Stainless Steel Pin & Barrel Swing Clear Continuous Hinge

The Markar HG310 Hinge Guard is an ADA-compliant, barrel-type hinge used on operating room doors to swing the door out of the opening when moving equipment in and out. This hinge guard also protects the door from dents and gouges.

Features

  • Stainless steel end pins
  • Used on operating room doors to swing door out of opening when moving equipment in and out
  • Fasteners concealed when door is closed
  • Supports weights up to 600 lbs., 4’0″ maximum door width
  • Symmetrically templated hole pattern
  • Exterior Barrel Diameter .438″ (7/16″)
  • Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws

Benefits

  • Guard protects the door from dents and gouges
  • ADA-compliant
  • Fire ratings up to and including 3 hours

Certifications

  • UL 10C positive pressure
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel
Material

304 Stainless Steel
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1
Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing
Continuous Hinge Type

Swing Clear
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
