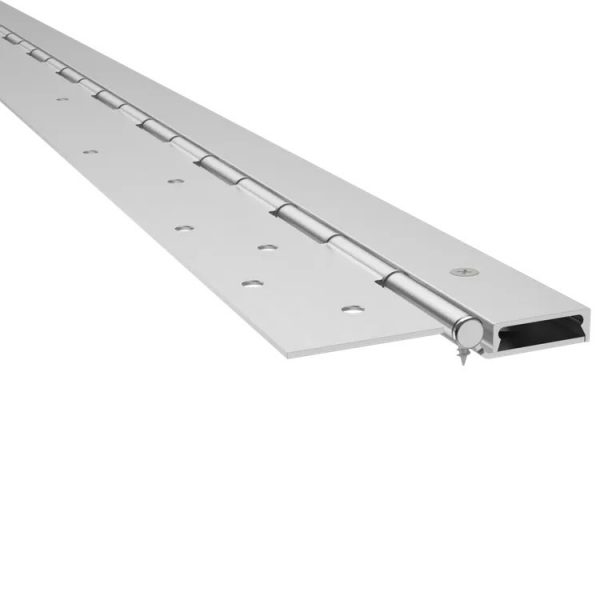

Markar HM304 Heavy Duty Half Mortise Stainless Steel Pin & Barrel Continuous Hinge

Usually Ships: 5-10 Business Days
  • Heavy-duty 14 gauge stainless steel
  • Supports weights up to 600lbs
  • .187″ diameter stainless steel pin (rod)

Available Options:

Markar HM304 Heavy Duty Half Mortise Pin & Barrel Continuous Hinge, Satin Stainless Steel

The Markar HM304 Series Half Mortise Continuous Pin and Barrel Hinge is used to repair wooden doors that have split or are chipped and dented from traffic abuse. The hinge’s surface mounted frame leaf allows for easy retrofit installation, and it can be used to reverse the handing or swing of the door without any modifications to the existing door.

Features

  • Stainless steel end pins
  • Cover made from extruded aluminum
  • Fasteners concealed when door is closed
  • Supports weight up to 600 lbs., 4’0″ maximum door width
  • Symmetrically templated hole pattern
  • Exterior barrel diameter .438″ (7⁄16″)
  • Hinge reinforcements are not required when installed on a 16 gauge (or heavier) metal frame

Benefits

  • Used to repair wooden doors that have a split, or are chipped and dented from traffic abuse
  • Surface mounted frame leaf allows for easy retrofit installation
  • Used to reverse the handing or swing of the door without any modifications to the existing door
  • Fire ratings up to and including 3 hours

Certifications

  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel

Material

304 Stainless Steel

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified

Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing

Continuous Hinge Type

Half Mortise

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
