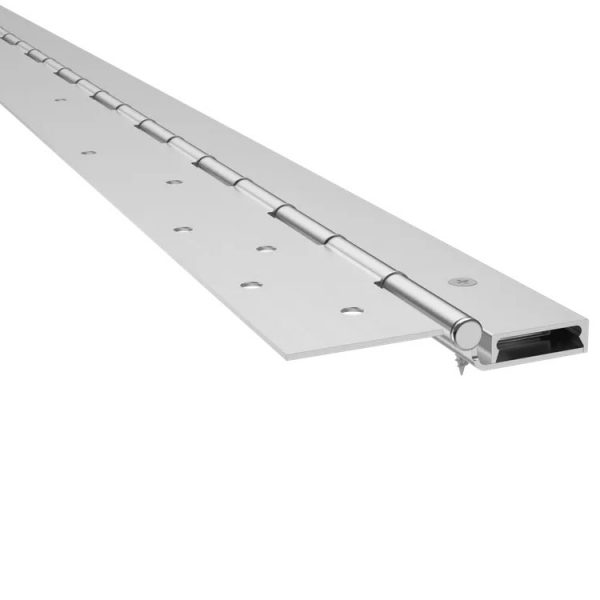

Markar HS303 Heavy Duty Half Surface Stainless Steel Pin & Barrel Continuous Hinge

Usually Ships: 5-10 Business Days
  • Heavy-duty 14 gauge stainless steel
  • Supports weights up to 600lbs
  • .187″ diameter stainless steel pin (rod)

Available Options:

Markar HS303 Heavy Duty Half Surface Pin & Barrel Continuous Hinge, Satin Stainless Steel

The Markar HS303 Series Half Surface Continuous Pin and Barrel Hinge can be used to repair and replace existing hinges on both fire-labeled and non-labeled openings. This hinge fits into the gap left after standard butt hinges are removed and can assist in reversing the handing of a door, or to reverse the swing of a door hung in an evenly rabbeted frame.

Features

  • Stainless steel end pins
  • Covers are extruded aluminum
  • Fasteners concealed when door is closed
  • Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEKScrews, 1/4-14 x 3/4 Security TORX TEK Screws, Zinc #8 x 3/4″ PFH Tek, Zinc, Cover Clip

Benefits

  • Used to repair and replace existing hinges on both fire-labeled and non-labeled openings
  • Fits into the gap left after standard butt hinges are removed
  • Assists in reversing the handing of a door, or to reverse the swing of a door hung in an evenly-rabbeted frame
  • Fire ratings up to and including 3 hours

Certifications

  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel

Material

304 Stainless Steel

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified

Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing

Continuous Hinge Type

Half Surface

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
