McKinney ElectroLynx Quick Connect Retrofit Cables for Electrified Hinges

Usually Ships: 1-2 Business Days
  • For use with McKinney electrified hinges
  • Molex connectors on one or both ends
  • Quick and simple installation

Available Options:

Clear

Product Overview

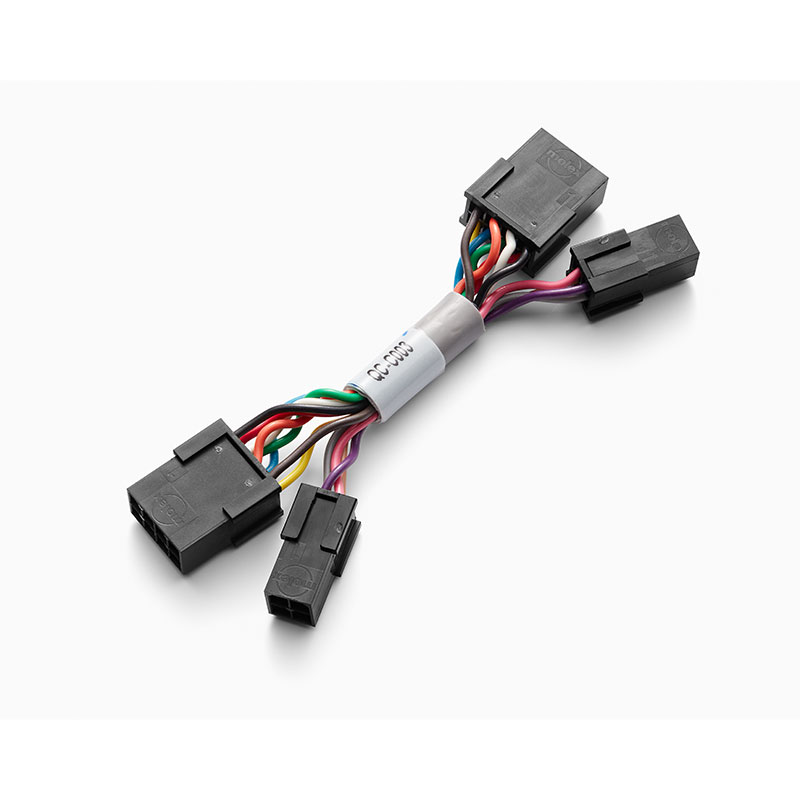

McKinney ElectroLynx Quick Connect Retrofit Cables

If you are not ordering doors from ASSA ABLOY with the ElectroLynx® cable pre-installed in the door, you must order an ElectroLynx® retrofit cable to go between any hardware and the hinge. This includes 3″ cables to go from the hinge to an exit device and up to a 15′ cable to go up and around a full lite metal door.

Features

  • For use in remote door monitoring and access control systems
  • Allows a constant flow of current from the power source through the hinge to electrified door hardware
  • Molex connectors on one or both ends
  • Can be used in conjunction with MM option on most full mortise hinges
  • Retrofit cables available if door was not ordered with cable pre-installed

Benefits

  • Quick and simple installation
  • No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
  • Brass eyelets add protection and durability
  • Wires are coordinated to work with other ASSA ABLOY Group brands electro-mechanical hardware

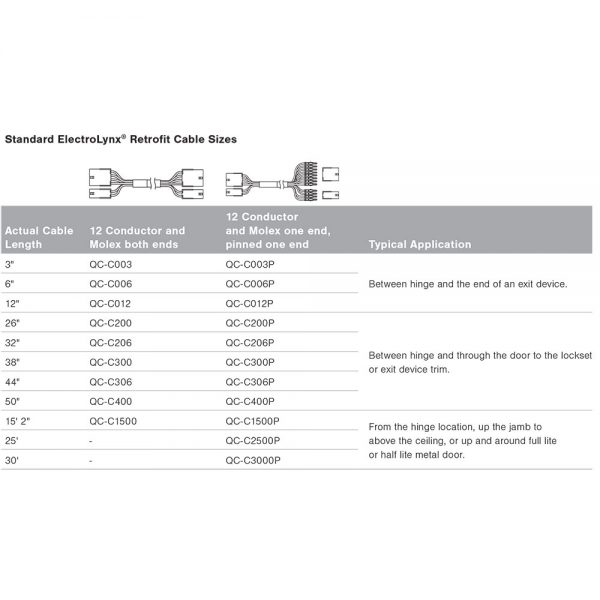

Standard ElectroLynx® Retrofit Cable Sizes

Actual Cable Length 12 Conductor and Molex both ends for Metal Doors 12 Conductor and Molex one end, pinned one end for Wood Doors Typical Application
3″ QC-C003 QC-C003P Between hinge and the end of an exit device.
6″ QC-C006 QC-C006P
12″ QC-C012 QC-C012P
26″ QC-C200 QC-C200P Between hinge and through the door to the lockset or exit device trim.
32″ QC-C206 QC-C206P
38″ QC-C300 QC-C300P
44″ QC-C306 QC-C306P
50″ QC-C400 QC-C400P
15’2″ QC-C1500 QC-C1500P From the hinge location, up the jamb to above the ceiling, or up and around full lite or half lite metal door.
25′ QC-C2500P
30′ QC-C3000P
Brand

Model

QC-C003, QC-C003P, QC-C006, QC-C006P, QC-C012, QC-C012P, QC-C1500, QC-C1500P, QC-C200, QC-C200P, QC-C206, QC-C206P, QC-C2500P, QC-C300, QC-C3000P, QC-C300P, QC-C306, QC-C306P, QC-C400, QC-C400P
