McKinney-MPB68-MacPro-Full-Mortise-Five-Knuckle-Butt-Hinge-26D-652

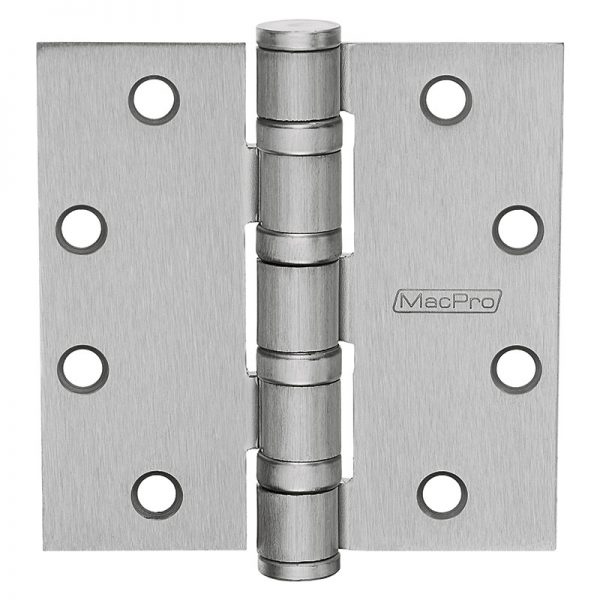

McKinney MacPro MPB68 – 4.5″ x 4.5″ Heavy Weight Ball Bearing Hinge

Usually Ships: 3-5 Business Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • .180 Heavy Weight – Ball Bearing
  • Five Knuckle, Template Hole Pattern

Available Options:

Product Overview

McKinney MacPro MPB68 Hinge, Full Mortise Five Knuckle Heavy Weight, 4-1/2″ x 4-1/2″, Square Corner

The MacPro line by McKinney offers contractor grade hinges to get the job done right. High quality MacPro hinges are an extraordinary value, ideal when you need large quantities of standard hinges.

  • Contractor grade
  • For doors with a closing device, bearing hinge must be used
  • For heavy weight doors with a closing device, select a MPB68, heavy weight bearing hinge
  • MacPro by McKinney templated hinges are made to conform to ANSI/BHMA 156.1, 156.7
Brand

Finishes

646 Satin Nickel, 652 Satin Chrome, BSP Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent
Hinge Type

Full Mortise
Size

4.5" x 4.5"
Knuckles

Five
Bearings

Ball Bearing
Usage

Heavy Duty
Base Material

Steel
Gauge

0 .180
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Fire Rating

Approved for NFPA 80 fire rated openings
