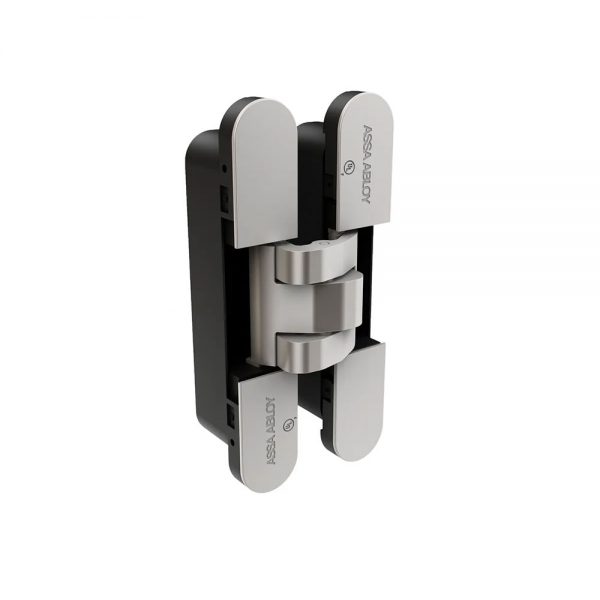

The MK100 concealed hinge is ANSI/BHMA Grade 1 Certified and has greater hinge capacity than the MK4001A and MK80 Series. It’s used on wood or hollow metal doors with a 1-3/8″ minimum thickness, are non-handed, and include snap-on covers.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The covers
conceal screws for a clean aesthetic.

Features

• For wood or hollow metal doors that are a minimum of 1-3/8″ thick
• Covers included
• Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – ABS plastic
• 180° opening angle
• UL Listed
• 3-dimensional adjustability

Benefits

• Greater hinge capacity than the MK4001A and MK80 Series
• 20-minute fire rating hollow metal, steel covered composite and wood core fire doors
• Virtually disappears from view when door is closed
• Provides aesthetic continuity when door is open
• Refined and minimal
• Snap-on covers conceal screws for a clean aesthetic
• Easy installation and door alteration

Specifications

• Model number: MK100/MK100ME (Covers included)
• Base material: Zinc alloy
• Overall hinge length: 160 mm (6.30″)
• Hinge width: 28 mm (1.10″)
• Non-handed
• Opening angle: 180 degrees
• 3-Dimensional adjustability:
  – Vertical +/- 2.5 mm
  – Horizontal +/- 2.5 mm
  – Depth +/- 1 mm
• For wood or hollow metal doors with wood or metal frames
• UL Listed for hollow metal, steel covered composite and wood core fire doors rated 20 minutes
• ANSI/BHMA A156.1 Grade 1

Cross Reference: Tectus 340 3D, Soss 216
