McKinney MK100ME “CC” Concealed Circuit 3D Adjustable Concealed Invisible Electrified Hinge

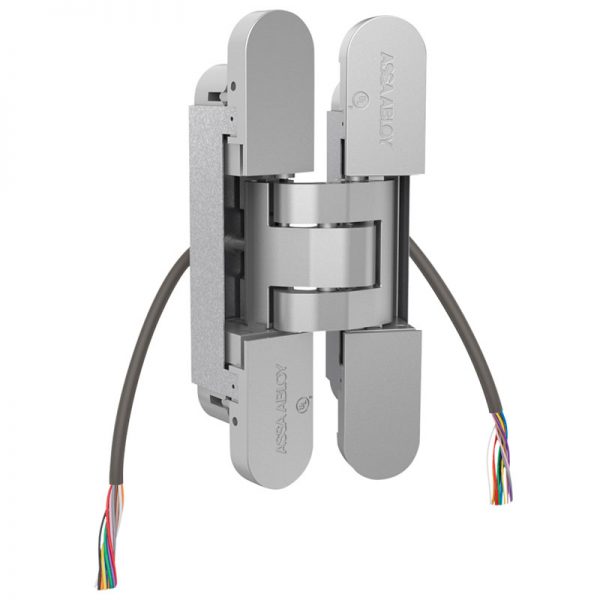

McKinney MK100ME Concealed Circuit 3D Adjustable Concealed Invisible Electrified Hinge

The MK100ME electrified concealed hinge allows for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices. Wiring is not visible, which eliminates tampering and enhances the aesthetics of the door opening.

The McKinney “CC” Concealed Circuit Hinge is an intermediate connector which allows for the passage of a constant flow of current between the source of power and the actuated devices in the door, i.e. electric locks, exit devices, etc. regardless of the door position.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The covers conceal screws for a clean aesthetic.

Features

• For wood or hollow metal doors that are a minimum of 1-3/8″ thick
• Covers included
• Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – ABS plastic
• 180° opening angle
• UL Listed
• 3-dimensional adjustability

Benefits

• Greater hinge capacity than the MK4001A and MK80 Series
• 20-minute fire rating hollow metal, steel covered composite and wood core fire doors
• Virtually disappears from view when door is closed
• Provides aesthetic continuity when door is open
• Refined and minimal
• Snap-on covers conceal screws for a clean aesthetic
• Easy installation and door alteration
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door

Specifications

• Model number: MK100/MK100ME (Covers included)
• Base material: Zinc alloy
• Overall hinge length: 160 mm (6.30″)
• Hinge width: 28 mm (1.10″)
• Non-handed
• Opening angle: 180 degrees
• 3-Dimensional adjustability:
  – Vertical +/- 2.5 mm
  – Horizontal +/- 2.5 mm
  – Depth +/- 1 mm
• For wood or hollow metal doors with wood or metal frames
• UL Listed for hollow metal, steel covered composite and wood core fire doors rated 20 minutes
• ANSI/BHMA A156.1 Grade 1
