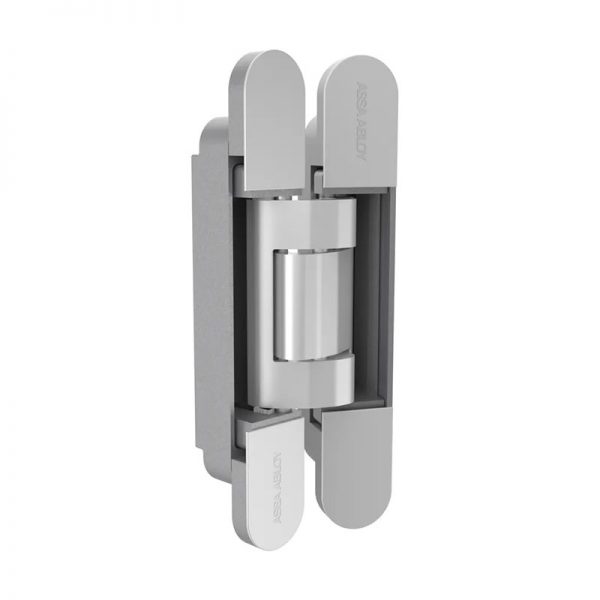

McKinney MK150 3D Adjustable Concealed Invisible Hinge

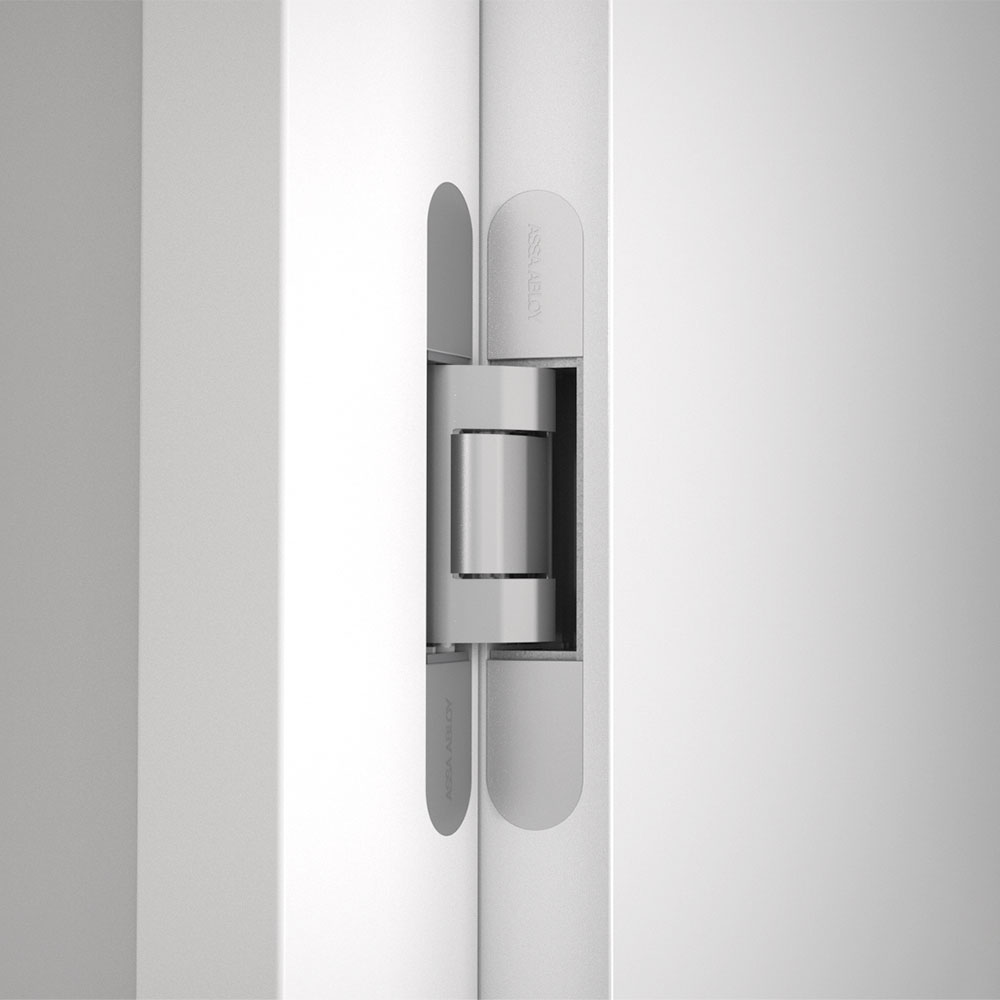

McKinney MK100 3D Adjustable Concealed Invisible Hinge, Satin Chrome Finish

The MK150 concealed hinge for wood or hollow metal doors with a 1-1/2″ minimum thickness, are non-handed and include magnetic covers.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The magnetic covers conceal screws for a clean aesthetic.

Features

• For wood or hollow metal doors that are a minimum 1-1/2″ thick
• Covers included
• 3-dimensional adjustability
• UL Listed
• Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – steel
• Sits flush inside the opening
• 180° opening angle

Benefits

• Greater hinge capacity than all McKinney concealed hinge models except the MK200
• Prevents tampering, increases security
• Keeps door clean and minimal
• Easy installation and door alteration
• Magnetic covers conceal screws for a clean aesthetic
• No visible exposure on the outside of the opening
• 20-minute fire rating hollow metal, steel covered composite and wood core fire doors

Specifications

• Model number: MK150 (Magnetic covers included)
• Base material: Zinc alloy
• Overall hinge length: 200 mm (7.87”)
• Hinge width: 32mm (1.26”)
• Non-handed
• Opening angle: 180 degrees
• 3-Dimensional adjustability:
  – Vertical +/- 3 mm
  – Horizontal +/- 3 mm
  – Depth +/- 1 mm
• For wood or hollow metal doors with wood or metal frames
• UL Listed for hollow metal, steel covered composite and wood core fire doors rated 20 minutes

Cross Reference: Tectus 540 3D, Soss 218
