McKinney MK200 3D Adjustable Concealed Invisible Hinge

$119.70

Usually Ships: 3-5 Business Days

For use with wood and hollow metal doors (1-3/4″ min. thickness)
Refined and minimal design
Features easy 3-Dimension adjustability

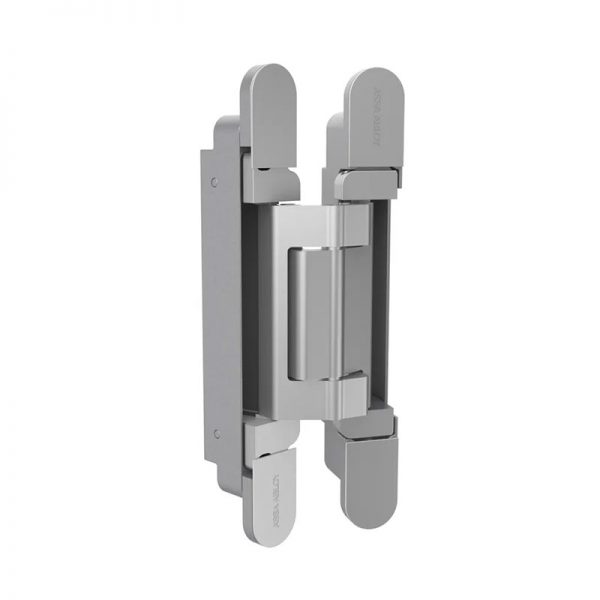

McKinney MK200 3D Adjustable Concealed Invisible Hinge, Satin Chrome Finish

The MK200 concealed hinge for wood or hollow metal doors with a 1-3/4″ minimum thickness, are non-handed and include magnetic covers.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The magnetic covers conceal screws for a clean aesthetic.

Features

For use on wood or hollow metal doors that are a minimum 1-3/4″ thick
Covers included
180° opening angle
3-dimensional adjustability
Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – steel

Benefits

Prevents tampering, increases security
Keeps door clean and minimal
No visible exposure on the outside of the opening
Magnetic covers conceal screws for a clean aesthetic
Easy installation and door alteration
Greater hinge capacity than all other McKinney concealed hinge models

Specifications

Model number: MK200 (Magnetic covers included)
Base material: Zinc alloy
Overall hinge length: 260 mm (10.24”)
Hinge width: 36mm (1.42”)
Non-handed
Opening angle: 180 degrees
3-Dimensional adjustability:
– Vertical +/- 3 mm
– Horizontal +/- 3 mm
– Depth +/- 1.5 mm
For wood or hollow metal doors with wood or metal frames

Cross Reference: Tectus 640 3D, Soss 220
