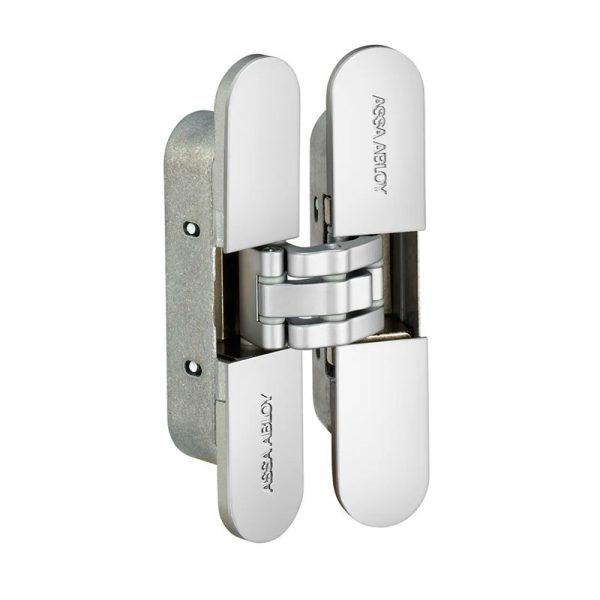

McKinney MK4001A 3D Adjustable Concealed Invisible Hinge

Usually Ships: 3-5 Business Days

For use with wood and hollow metal doors (1-1/2″ min. thickness)
Refined and minimal design
Features easy 3-Dimension adjustability

Available Options:

Finish

Clear

Quantity:

McKinney MK4001A 3D Adjustable Concealed Invisible Hinge

The MK4001A concealed hinge for wood or hollow metal doors with a 1-1/4″ minimum thickness, are non-handed and include snap-on covers.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The snap-on covers conceal screws for a clean aesthetic.

Features

For wood or hollow metal doors that are a minimum 1-1/4″ thick
3-dimensional adjustability
Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – ABS plastic
Covers included
180° opening angle

Benefits

Virtually disappears from view when the door is closed
Provides aesthetic continuity when door is open
Refined and minimal
Easy installation and door alteration
Snap-on covers conceal screws for a clean aesthetic

Specifications

Base material: Zinc alloy
Overall hinge length: 115mm (4.53”)
Hinge width: 23mm (.91”)
Non-handed
Opening angle: 180 degrees
3-Dimensional adjustability:
– Vertical + /- 1.5 mm
– Horizontal + /- 1.5 mm
– Depth + /- 1 mm
For wood or hollow metal doors with wood or metal frames

Cross Reference: Tectus 240, Soss 212
