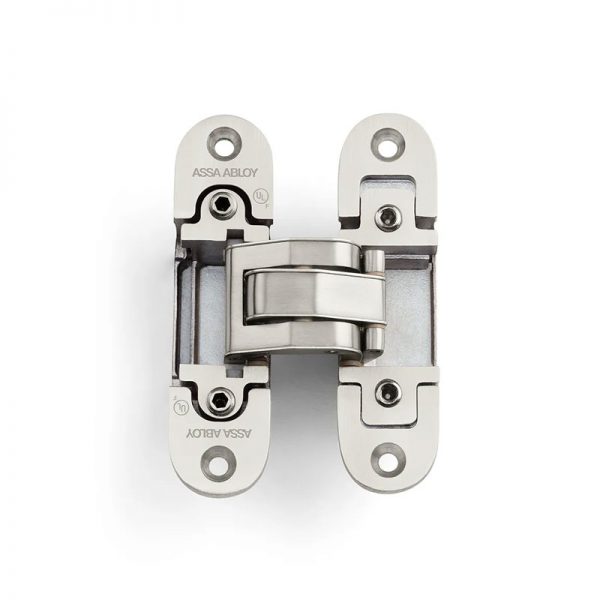

McKinney MK80SS 3D Adjustable Concealed Invisible Hinge

McKinney MK80SS 3D Adjustable Concealed Invisible Hinge, US32D Satin Stainless Steel

The MK80SS stainless steel, non-handed concealed hinge is coverless and used on wood or hollow metal doors that are at least 1-3/8″ thick.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration.

Features

• For wood or hollow metal doors that are a minimum of 1-3/8″ thick
• No covers
• 3-dimensional adjustability
• Zinc alloy base material
• 180° opening angle
• UL Listed

Benefits

• Virtually disappear from view when the door is closed
• Provides aesthetic continuity when door is open
• Refined and minimal
• Easy installation and door alteration
• Greater hinge capacity than the MK4001A

Specifications

• Base material: Stainless Steel
• Overall hinge length: 111.5mm (4.39”)
• Hinge width: 29mm (1.14”)
• Non-handed
• Opening angle: 180 degrees
• 3-Dimensional adjustability:
  – Vertical + /- 2 mm
  – Horizontal + /- 2 mm
  – Depth + /- 1 mm
• For wood or hollow metal doors with wood or metal frames
• UL Listed for both hollow metal or steel covered composite fire doors rated up to 3 hours
• UL Listed for wood core fire doors rated 20 minutes

Cross Reference: Tectus 526 3D (SS), Soss 416-SS
