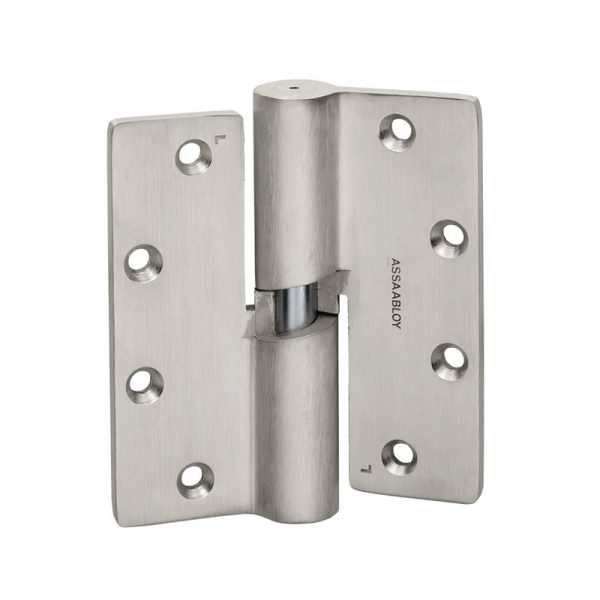

McKinney MKCL250 5″ x 4.5″ Cam Lift Hinge

Usually Ships: 3-5 Business Days
  • For acoustic doors and energy saving doors with seals
  • Creates a tight seal when the door is closed
  • Door rating up to 500 lbs.

Available Options:

McKinney MKCL250 5″ x 4-1/2″ Stainless Steel Cam Lift Hinge, 32D/630 Satin Stainless Steel Finish

The MKCL250 stainless steel cam lift hinge, with a 500 lb door rating, moves the door up 5/16″ and then lowers it to create a tight seal when the door is closed, recommended for acoustic and energy-saving doors with seals.

Features

  • For acoustic doors or energy saving doors with seals
  • Minimum clearance at head of frame is 3/16″, for doors greater than 1-3/4″ clearance is 1/4″
  • Door rating up to 500 lbs.

Benefits

  • Creates a tight seal when the door is closed reducing the transmission of sound through the opening
  • Helps prevent binding
  • Reduces damage and wear to door seals
  • Pairs well with Pemko acoustic door seals
Brand

Finish

Stainless Steel

Size

5" x 4.5"

Fasteners

Machine: 12-24 x 3/4
