mckinney_t4a3386_full_mortise_five_knuckle_butt_hinge_cc8_32d_630

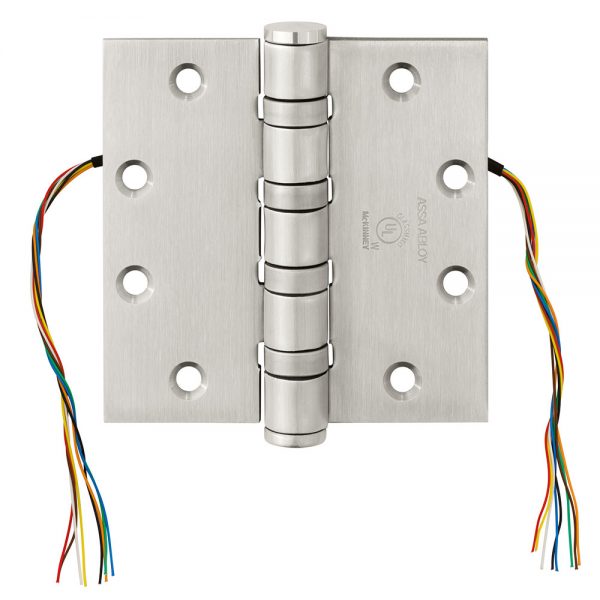

McKinney T4A3386 CC8 4.5″ x 4.5″ Heavy Weight Concealed Circuit Full Mortise Electrified Hinge, 8 Wire

Usually Ships: 3-5 Business Days
  • Allows electrical currents to pass from jamb through the hinge into door
  • Easily and safely powers locking hardware and access control
  • Five-knuckle, template hole pattern

Available Options:

Product Overview

McKinney T4A3386 CC8 4-1/2″ x 4-1/2″ Heavyweight Concealed Circuit Full Mortise Electrified Hinge, 8 Wire

Concealed Circuit electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating disruption of power due to tampering or disconnection, and improving the aesthetics of the opening.

Features

  • Allows operation of devices requiring power such as electric locks, electric strikes, and electric latch retraction exit devices
  • Four amp continuous @ 24 volts AC or DC per circuit 16.0 Amps intermittent duty (pulse) for 300 milliseconds
  • CC option has 28 gauge wire
  • Hinges are supplied with 8″ (305) leads as standard. Extra lengths are available at additional cost

Benefits

  • Wires are contained within the hinge making them invisible and tamperproof
  • Secures building and doorways
  • Easily and safely powers locking hardware and access control
Brand

Finishes

613 Oil Rubbed Bronze, 626 Satin Chrome, 630 Satin Stainless Steel
Hinge Type

Full Mortise
Size

4.5" x 4.5"
Knuckles

Five
Bearings

Oil Impregnated Bearing
Usage

Heavy Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Fire Rating

UL Listed
Electrical Rating

Four amp continuous @ 24 volts AC or DC per circuit 16.0 Amps intermittent duty (pulse) for 300 milliseconds
