McKinney T4A3786 5″ x 4.5″ Heavy Weight Reversible Interim Full Mortise Hinge

$43.09

Usually Ships: 3-5 Business Days

For installations where door and frame are prepped for two different sizes
Saves the cost of replacing the door or frame
Reversible, non-handed

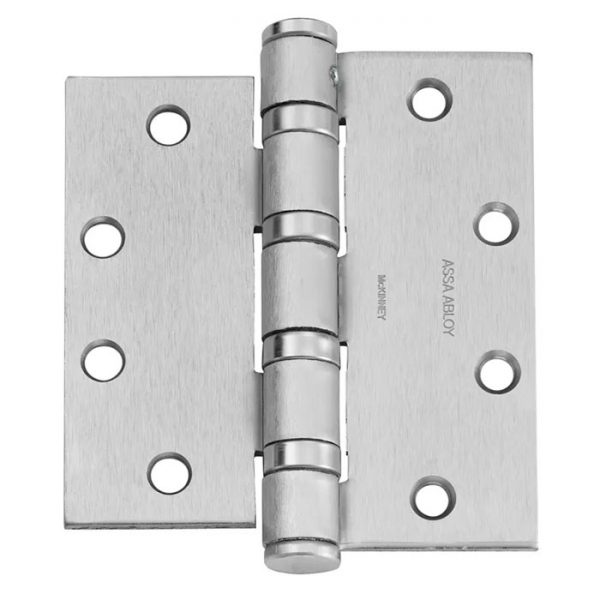

McKinney T4A3786 Interim Steel Heavy Weight Full Mortise Hinge, 5″ x 4-1/2″

The T4A3786 Interim (steel) full mortise heavy weight hinges are reversible and recommended for installations where door and frame are prepped for two different hinge sizes. All interim hinges are supplied with NRP set screw and no hole bottom plug which allow them to be reversible.

Door or frame leaf: 5″
Opposite leaf trimmed to: 4-1/2″

Features

For installations where door and frame are prepped for two different sizes
Equal amount is trimmed from the top and bottom of the leaf
Supplied with a no hole bottom plug
Pin is held in place by an NRP set screw
Heavy weight
Equal amount is trimmed from the top and bottom of the leaf
Reversible

Benefits

For new or retrofit installations
Non-Removable Pin (NRP) ensures hinge is held in place and can’t be removed when door is closed
Saves the cost of replacing the door or frame

Brand	McKinney
Finishes	652 Satin Chrome
Hinge Type	Full Mortise
Size	4.5" x 5", 5" x 4.5"
Gauge	0.190
Knuckles	Five
Bearings	Oil Impregnated Bearing
Fasteners	Machine: 1/2 x 12-24, Wood: 1 1/4 x 12
ANSI/BHMA Standard	ANSI/BHMA A156.1
Fire Rating	Approved for NFPA 80 fire rated openings
