Product Overview

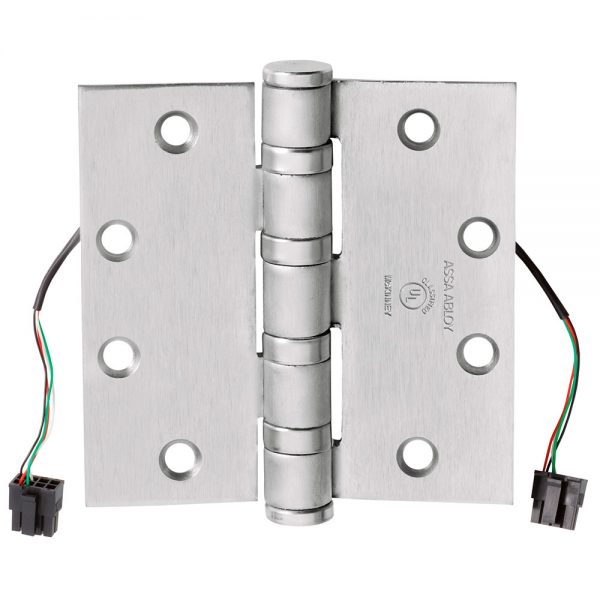

McKinney T4A3786 QC4 ElectroLynx® Quick Connect Heavy Weight Full Mortise Hinge, 4-1/2″ x 4-1/2″
ElectroLynx hinges feature concealed plug connectors transfer power from the incoming source through to the electrified hardware. They eliminate the need for separate or exposed wiring, make installation quick and simple, and brass eyelets add protection and durability.
- Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware
- No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
- For 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used
- A pigtail is provided for connection to the source wiring
- Wires are coordinated to work with other ASSA ABLOY Group brands electro-mechanical hardware
Brand | |
---|---|
Finishes | 640 Oil Rubbed Bronze, 652 Satin Chrome |
Hinge Type | Full Mortise |
Size | 4.5" x 4.5" |
Knuckles | Five |
Bearings | Oil Impregnated Bearing |
Usage | Heavy Duty |
ANSI/BHMA Standard | Meets ANSI/BHMA A156 .1 |
Fire Rating | UL Listed |
