Product Overview

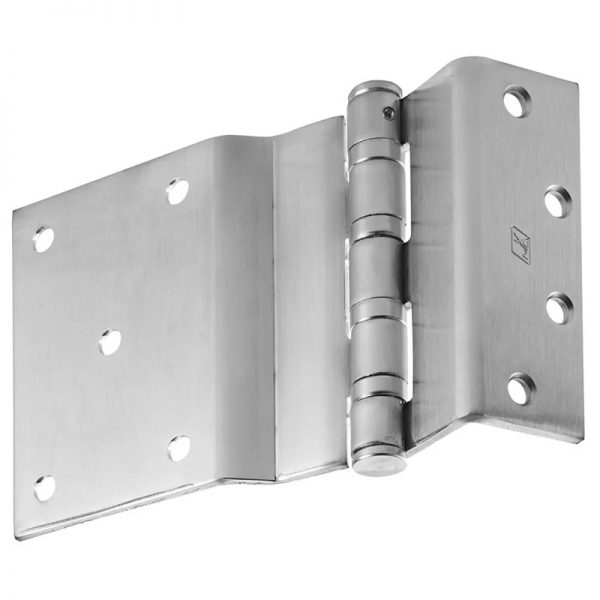

McKinney T4A3796 5″ Steel Five Knuckle Heavy Weight Swing Clear Half Surface Hinge
The T4A3796 steel five knuckle heavy weight swing clear half surface hinge allows maximum clearance for passage of equipment through door openings and are recommended for use on high frequency and/or heavy wood and metal doors in public buildings where there is heavy traffic.
Features
- Heavy weight – for use on all extra heavy and/or high frequency doors
- Allows maximum clearance for passage of equipment through doorway
- Jamb leaf is fastened into the mortise with machine screws, door leaf is applied full surface with thru bolts and grommet nuts
- Pin is held in place by an NRP set screw
- Packed with all machine screws and thru bolts and grommet nuts
- Reversible
Benefits
- Non-Removable Pin (NRP) ensures hinge is held in place and can’t be removed when door is closed
| Brand | |
|---|---|
| Size | 5" |
| Finishes | 652 Satin Chrome |
| Hinge Type | Half Surface |
| Special Feature | Swing Clear Hinge |
| Gauge | 0.190 |
| Knuckles | Five |
| Bearings | Oil Impregnated Bearing |
| ANSI/BHMA Standard | Meets ANSI/BHMA A156 .1 |
| Fire Rating | Approved for NFPA 80 fire rated openings |
