T4A3795-26D

McKinney T4A4795 – Heavy Weight Swing Clear Bearing Hinge for Beveled Door

Usually Ships: 3-5 Business Days
  • Meets industry standards ANSI/BHMA A156.1
  • Allows for maximum clearance
  • For extra heavy and/or high frequency doors

Available Options:
Clear

Product Overview

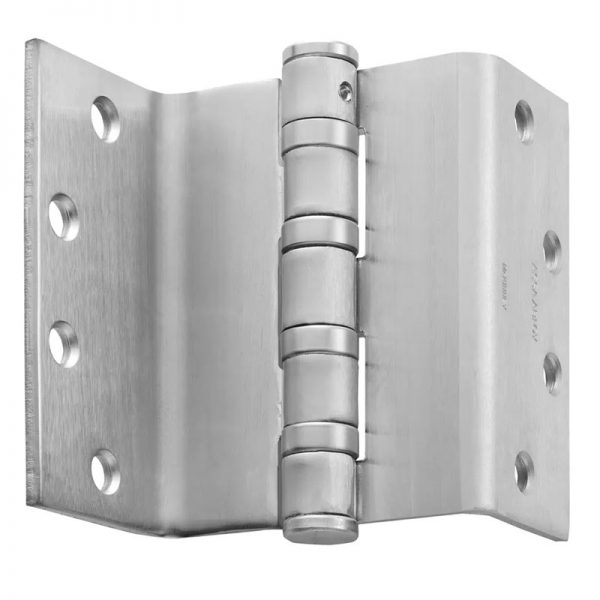

McKinney T4A4795 Steel Full Mortise Heavy Weight Swing Clear 5 Knuckle Bearing Hinge

The T4A4795 (steel) five knuckle heavyweight swing clear full mortise hinges creates barrier free openings by moving the hinge barrel and door edge out of the way and are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Features

  • Heavy weight – for use on all extra heavy and/or high frequency doors
  • Allows for maximum clearance for passage of equipment through the doorway
  • ADA compliant
  • Meets ANSI A117.1-1986
  • Pin is held in place by an NRP set screw, which allows hinge to be reversible

Benefits

  • Non-Removable Pin (NRP) ensures hinge is held in place and can’t be removed when door is closed
  • Creates barrier free openings by moving the hinge barrel and door edge out of the way
  • Pressed steel jambs require no special reinforcing
Brand

Finishes

652 Satin Chrome
Hinge Type

Full Mortise
Special Feature

Non-Removable Pin, Swing Clear Hinge
Size

4.5", 5"
Knuckles

Five
Bearings

Oil Impregnated Bearing
Usage

Heavy Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Fire Rating

Certified to meet UL standards (3hr)
Fasteners

Packed with wood and metal screws
