McKinney TA2714 PoE Electrolynx Power over Ethernet Quick Connect Full Mortise Electrified Hinge

Usually Ships: 10-20 Business Days
  • Allows passing of Ethernet data through the door opening
  • Fast, fool-proof, and future-proof installations
  • PoE data is bidirectional

Available Options:

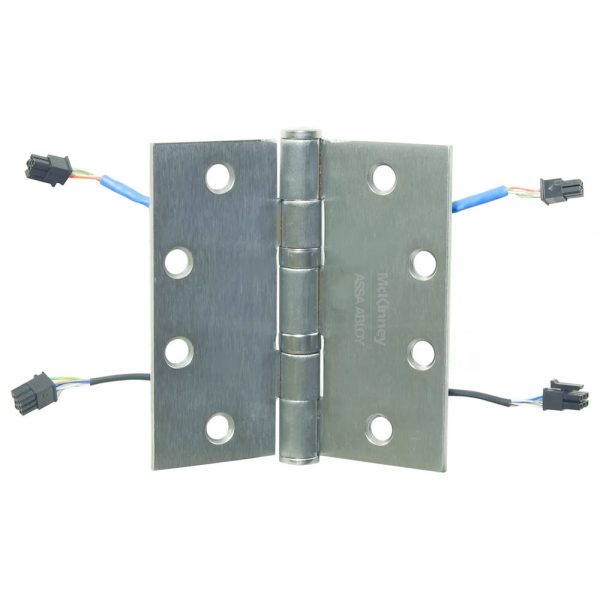

McKinney TA2714 PoE Electrolynx Power over Ethernet Quick Connect Full Mortise Electrified Bearing Hinge, Standard Weight, Five Knuckle, Square Corner

ElectroLynx PoE Quick Connect hinge provides for the passing of Ethernet data through the door opening. Installation is a snap with the friendly plug-and-play connectors which allow power to be linked from the incoming source through the door to the electrified hardware. PoE data is bidirectional.

Features

  • Contain brass eyelets
  • Has two 6-position and two 4-position Molex connectors; 9 multistrand wires; 2 twisted pairs (26 AWG), 4 straight conductors (28 gauge), 1 straight conductor (24 AWG)
  • Power over Data (5 wire). Supplied together over the 2 twisted (26 AWG) pairs and 24 AWG conductor is used for the earth ground connection
  • Data with Power over spares (9 wire). Data over 2 twisted (26 AWG) pairs with Power over spare pairs (4 straight 28 AWG conductors) and the 24 AWG conductor is used for the earth ground connection
  • Concealed plug connectors
  • PoE hinge should be installed the second from bottom hinge position on the door. Once installed, it will give no outward indication of its function and will transfer power and data efficiently and reliably, as long as the wire capacity is not exceeded
  • Mating PoE door and frame side harnesses are required to complete the opening; required PoE harnesses must be ordered separately
  • The PoE door and frame harnesses can accommodate a variety of new (with raceway) and retrofit applications
  • Connectors are small enough to run through a 3/8″ min stile-to-stile door raceway
  • Steel and stainless steel approved for NFPA 80 fire-rated openings

Benefits

  • Brass eyelets add protection and durability to the PoE hinge which features common wire colors coordinated to work with intelligent Power over Ethernet electromechanical hardware from SARGENT and Corbin Russwin
  • ASSA ABLOY Group brands offer ElectroLynx, a universal quick-connect system that simplifies the electrification of the door opening
  • Connects to intelligent PoE electromechanical hardware from Corbin Russswin and SARGENT
  • Snap-together Molex® connectors ensure proper connections
  • No external wires can be seen
  • Eliminates tapering
  • Fast, fool-proof, and future-proof installations
  • Easy upgrades and retrofitting while maintain fire-rating
  • No need to match up wires, create connections, or drill holes in the door or frame
  • Concealed wiring preserves aesthetics of the openings
Brand

Finishes

632 Bright Brass, 639 Satin Bronze, 640 Oil Rubbed Bronze, 652 Satin Chrome

Hinge Type

Full Mortise

Size

4.5" x 4", 4.5" x 4.5"

Knuckles

Five

Bearings

Oil Impregnated Bearing

Usage

Medium Duty

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire Rating

UL Listed

Electrical Rating

361 mA continuous @ 57 volts DC
