Product Overview

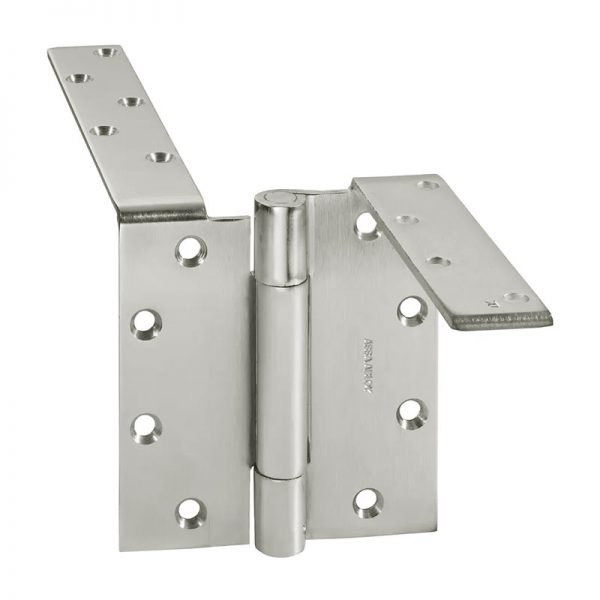

McKinney TA5392 5″ x 4-1/2″ Anchor Hinge Set for Beveled Doors, Heavyweight, Three Knuckle, 32D/630 Satin Stainless Steel Finish
The TA5392 (stainless steel) three knuckle heavy weight hinge sets come with one anchor hinge and two 5″ x 4-1/2″ full mortise hinges. They permit use of surface applied holders and closers on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges.
Features
- Set includes (2) TA386 5″ x 4-1/2″ hinges and (1) TA392 Anchor hinge
- For use on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges
- Heavy weight – for use on all extra heavy and/or high frequency doors
- Used in conjunction with surface-applied holders and closers
- Anchor plate for door and jamb header
- Packed with all machine and all wood screws
- Pin is held in place by an NRP set screw
- UL/ANSI: NFPA 80 UL Openings, A5551 Grade 1
Benefits
- Anchor plate permits use of surface applied holders and closers
- Prolongs the life of door and hardware and helps prevent door sagging
- Non-Removable Pin (NRP) ensures hinge is held in place and can’t be removed when door is closed
Brand | |
---|---|
Finish | Stainless Steel |
Size | 5" x 4.5" |
ANSI/BHMA Standard | A5551 Grade 1 |
Fire Rating | Approved for NFPA 80 fire rated openings |
Knuckles | Three |
Bearings | Concealed Bearing |
Fasteners | Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
