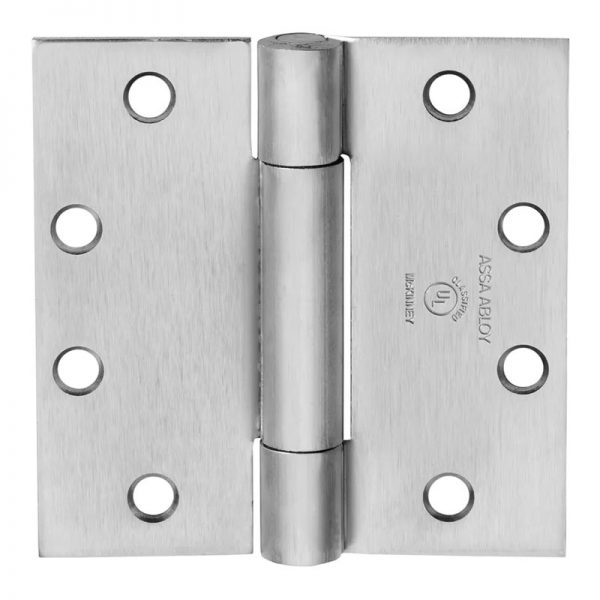

McKinney TA786 – 4.5″ x 4.5″ Heavy Weight Concealed Bearing Hinge

Usually Ships: 3-5 Business Days
  • Meets ANSI/BHMA A156.1
  • .180 heavy weight
  • Three-knuckle, template hole pattern

Available Options:

McKinney TA786 4-1/2 x 4-1/2 Full Mortise Heavy Weight 3 Knuckle Hinge, Concealed Bearing, Square Corner

The TA786 (steel) are our heavy weight three knuckle hinges, recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals or other public buildings where heavy traffic is experienced.

  • Heavy weight – for use on all extra heavy doors or those exposed to high frequency use.
  • Use for common flush door/frame/wall application
  • Where doors are beveled on hinge side, specify TA5386 or TA5786
  • Anti-friction type bearings at both joints
  • Approved for NFPA 80 fire-rated openings
Brand

Finishes

639 Satin Bronze, 640 Oil Rubbed Bronze, 646 Satin Nickel, 651 Bright Chrome, 652 Satin Chrome

Size

4.5" x 4.5"

Hinge Type

Full Mortise

Knuckles

Three

Bearings

Concealed Bearing

Gauge

0 .180

Usage

Heavy Duty

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire Rating

Certified to meet UL standards (3hr)

Fasteners

Packed with wood and metal screws
