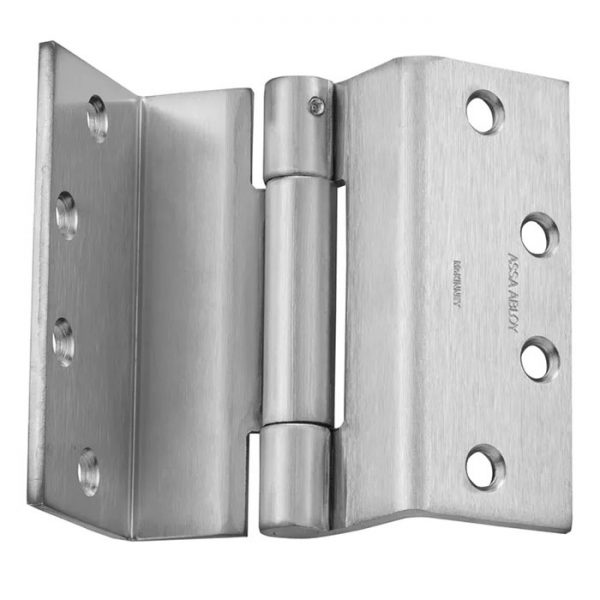

McKinney TA795 – Heavy Weight Swing Clear Concealed Bearing Hinge

Usually Ships: 3-5 Business Days
  • Meets industry standards ANSI/BHMA A156.1
  • Allows for maximum clearance
  • For heavyweight and high frequency doors

Available Options:

McKinney TA795 Steel Full Mortise Heavy Weight Swing Clear 3 Knuckle Concealed Bearing Hinge, 26D/652 Satin Chrome

The TA795 is a steel heavy weight three knuckle reversible hinge, which is recommended for buildings with high frequency and/or heavy doors and allows for maximum doorway clearance.

Features

  • Allows for maximum clearance for passage of beds, tables or other equipment through doorway
  • Pin is held in place by NRP set screw which allows the hinge to be reversible
  • Heavy weight – for use on all extra heavy and/or high frequency doors
  • Where doors are beveled on hinge side, specify TA5795
  • Hospital tip available
  • Anti-friction type bearings at both joints

Benefits

  • Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
  • Pressed steel jambs require no special reinforcing
  • Prevents damage to the door and frame from traffic passing through
  • Effectively widens the doorway
Brand

Finishes

652 Satin Chrome

Hinge Type

Full Mortise

Special Feature

Hospital Tip, Non-Removable Pin, Swing Clear Hinge

Size

4.5", 5"

Knuckles

Three

Bearings

Concealed Bearing

Usage

Heavy Duty

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire Rating

Certified to meet UL standards (3hr)

Fasteners

Packed with wood and metal screws
