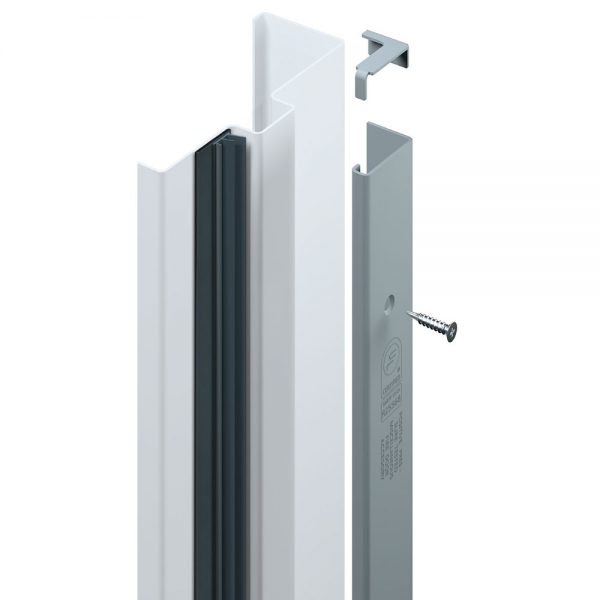

NGP (National Guard) GAP90N Perimeter Gap Solution for Excessive Fire Door and Frame Clearances, Narrow Soffit

NGP Gap90N – Fire Door Head / Jamb Gap Solutions for Narrow Soffit — Up To 90 Minutes

NGP’S UL CERTIFIED 90-MINUTE FIRE DOOR GAP SOLUTIONS WILL HELP YOU AVOID THE COST, LABOR, AND DISRUPTION OF REPLACING EXISTING STRUCTURES TO ACHIEVE COMPLIANCE.

• UL Certified for Head/Jamb Gaps — Measuring Over 1/8″, and up to 3/8″ and a Soffit Measuring 1/2″ to 1-3/8″
• POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, Complies with IBC, NFPA 80 and NFPA 252 for Application to Hollow Metal and Wood Fire Doors Rated up to 90 Minute with Excessive Door and Frame Clearances, Measuring up to 5/16″
• Restricts the Passage of Smoke
• Non-Handed
• Designed for Use Where Door Frame Stop is Less Than 1-3/8″ Wide
• An NGP Strike Shim (9275 or 9225) may also be Required for Proper Latchbolt Engagement
• Patented: US Patent 9,273,510 B2
• Available in 36″, 48″, 84″ and 96″ lengths (order 1 piece for head and 2 pieces for jambs)

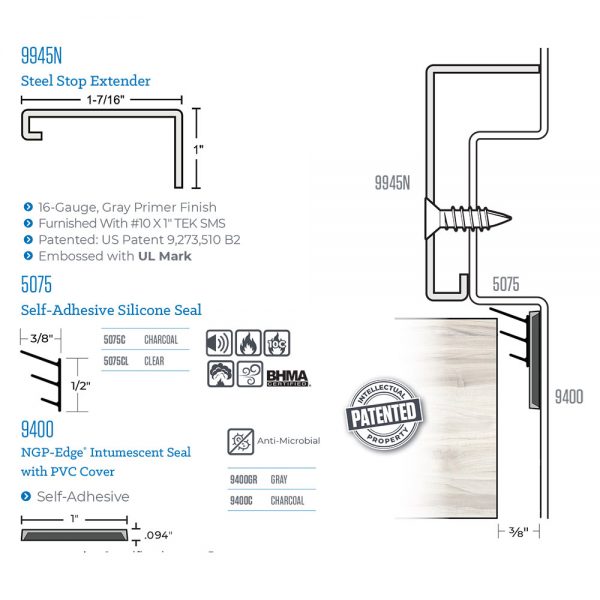

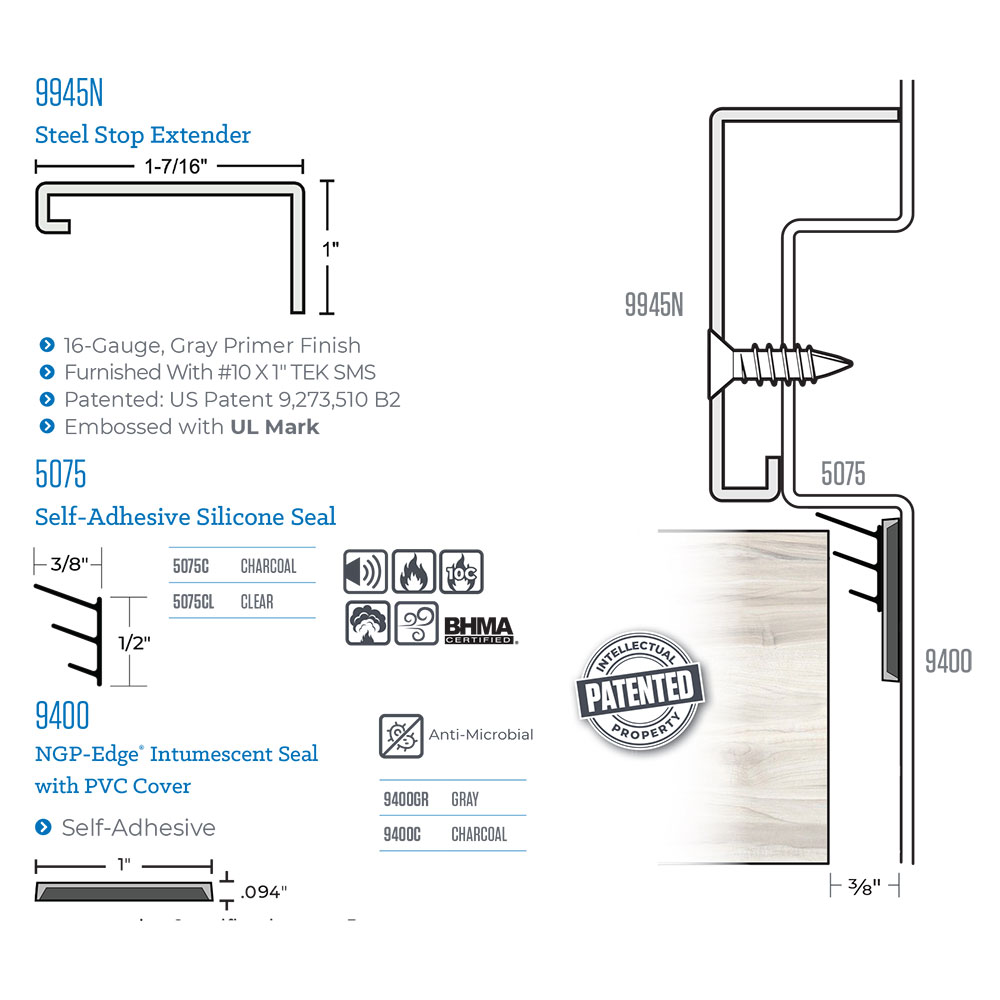

Steel Stop Extender – 9945

• 16-Gauge, Gray Primer Finish
• Furnished with #10 X 1″ TEK SMS
• Patent No.: US9,273,510B2
• Embossed with UL Mark

Self-Adhesive TPE Seal – 5075

NGP-Edge® Intumescent Seal with PVC Cover – 9400

• 9400 GRAY (with GRAY)
• 9400DKB BROWN (with DKB)

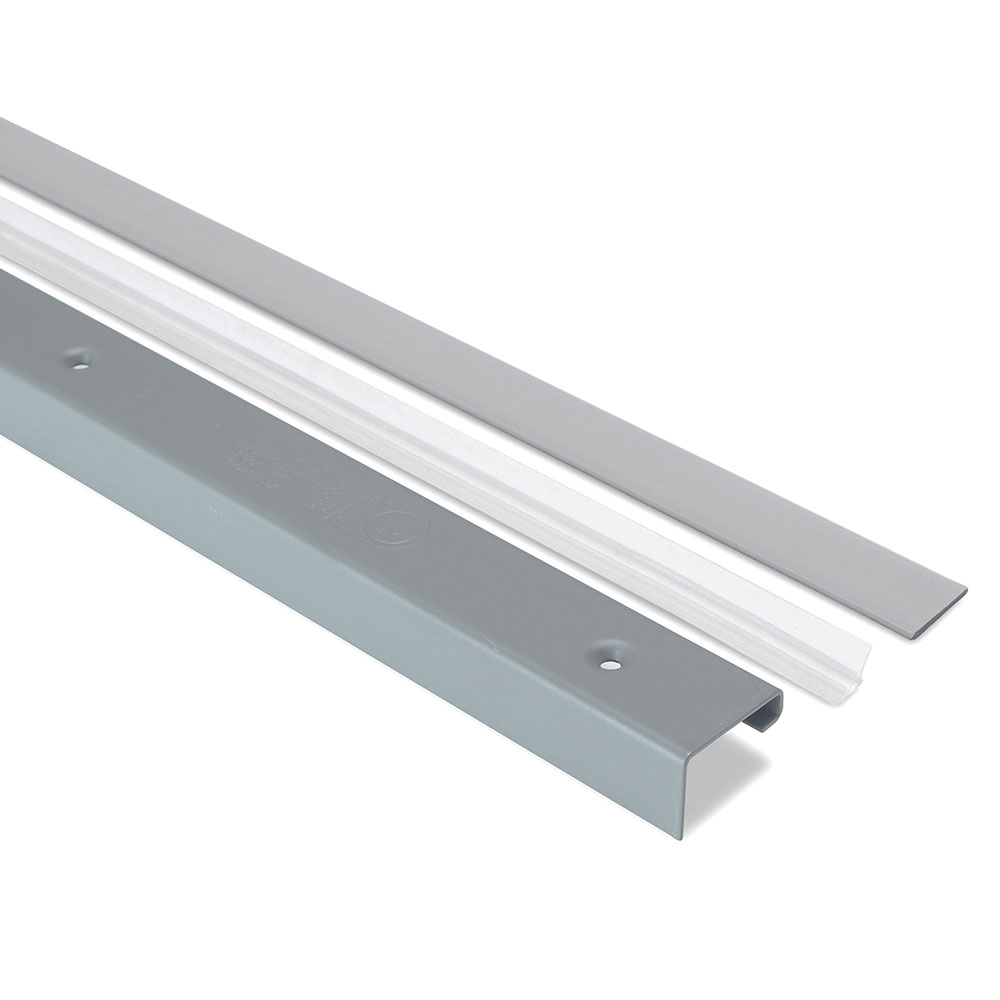

GAP90N™
Requires Installation of ALL Components:
9945N, 9400, 5075CL

GAP90NDKB™
Requires Installation of ALL Components:
9945N, 9400DKB, 5075B
