NGP (National Guard) HD5400 Heavy Duty Half Surface Continuous Geared Hinge

Usually Ships: 3-5 Business Days
  • 3/32″ door inset for 1-3/4″ to 2-1/4″ doors
  • UL listed, fire-rated up to 90-minutes
  • Supports weights up to 600lbs

Available Options:

Product Overview

NGP HD5400 Heavy Duty Half Surface Continuous Geared Hinge

Continuous geared aluminum hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high-frequency and heavy-weight doors in new construction and retrofit applications.

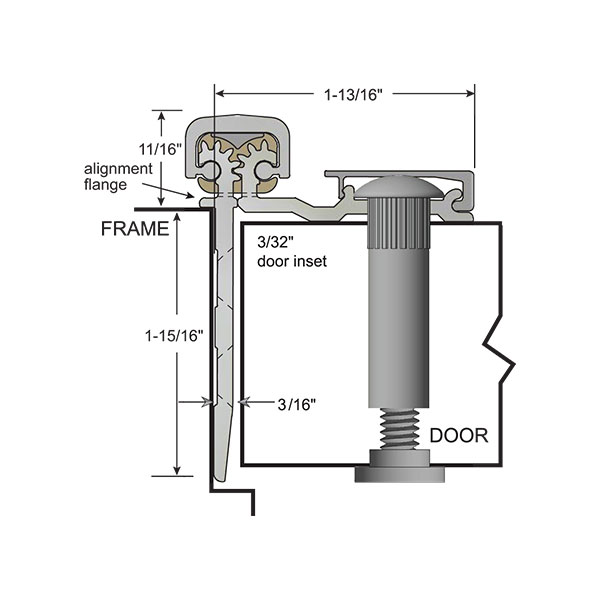

  • 3/32″ Door Inset for 1-3/4″ to 2-1/4″ Doors
  • Aluminum alloy 6063-T6; Anodized after machining
  • Specially designed involute intermeshing gears
  • Proprietary Teflon infused self-lubricating wear-resistant bearings
  • No hinge reinforcement is necessary except on extremely heavy, extremely high-frequency or extra-wide doors
  • Lifetime of the door opening warranty
  • Frame leaf: #12-24 TEK flat head MS
  • Door leaf: #12-24 TEK pan head MS and 1/4″-20 thru-bolts
  • Standard lengths: 83″, 85″, *95″
  • Note: For door sizing refer to installation instructions

*Oversize handling fee applies (added at checkout)

Brand

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Material

Aluminum alloy 6063-T6; Anodized after machining
ANSI/BHMA Standard

ANSI/BHMA Certified to A156.26 American National Standard for Continuous Hinges: Grade 1 – 150 lb. Door, Grade 1 – 600 lb. Door
Fire Rating

Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".
Continuous Hinge Type

Half Surface
Usage

Heavy Duty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
