NGP (National Guard) HP90-FB Flush Bolt Hardware Prep Filler, Fire Door Repair Kit

NGP HP90-FB Flush Bolt Prep Filler Kit

UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps

• Application Certified on Both Hollow Metal and Wood Fire-Rated Doors – up to 90-Minute
• Certified for Filling Manual or Automatic Flush Bolt Cavities
• Finish: Primer Gray, Powder Coat

PRODUCT CONSISTS OF:

• HP90 – 2″ × 6″ Rectangular Fire-Rated Panel
• HP90 – 0.5 Cylindrical Fire-Rated Panel
• Steel Filler Plates: (Powder Coated Primer Gray, Embossed With UL Mark) – HP90-FBE6750, Edge Filler Plate – HP90-FBE8500, Edge Filler Plate – HP90-FBL2000, Latch Bolt Filler Plate – HP90-FBL2500, Latch Bolt Filler Plate – HP90-FBL3875, Latch Bolt Filler Plate – HP90-SF2250, Strike Filler Plate
• Hardware Pack: #10-32 × 1 ¾” FHPH SS machine screw – #8 × ¾” FHPH SS combo screw – #12 × 1″ FHPH SS combo screw – #8 × ¾” FHPH SS SMS – #12 × 1″ FHPH SS SMS

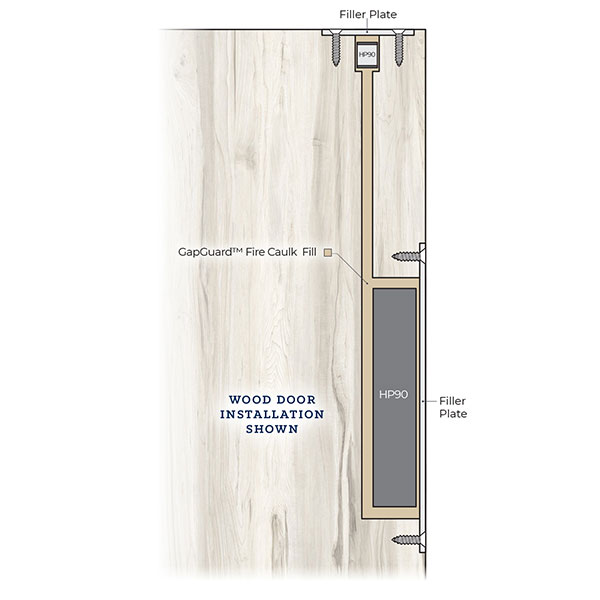

• GapGuard™ Fire Caulk (see installation instructions)

SPECIAL NOTES: 90-minute rated UL Certified Miscellaneous Fire Door Accessory on UL10B and UL10C wood or hollow metal fire doors. To retain UL Certification, the HP90-FB must be installed using GapGuard™ Fire Caulk.
