NGP (National Guard) L-A700-BF Aluminum No Vision Louver with Inverted V Blades

Usually Ships: 5-10 Business Days
  • Extruded aluminum frame and blades – free area 55%
  • For 1-3/8″, 1-3/4″ up to 2-1/4″ thick doors
  • Self-attaching, vandal-proof design

Available Options:

National Guard Products (NGP) L-A700-BF Aluminum No Vision Louver for 1-3/8″ to 2-1/4″ Thick Doors

Louvered doors help ventilate rooms when closed while still providing privacy and security.

  • For 1-3/8″, 1-3/4″ up to 2-1/4″ Thick Doors
  • Frame .050″ Extruded Aluminum
  • Blades .050″ Extruded Aluminum
  • Mitered Corners Secured With Reinforcing Clips

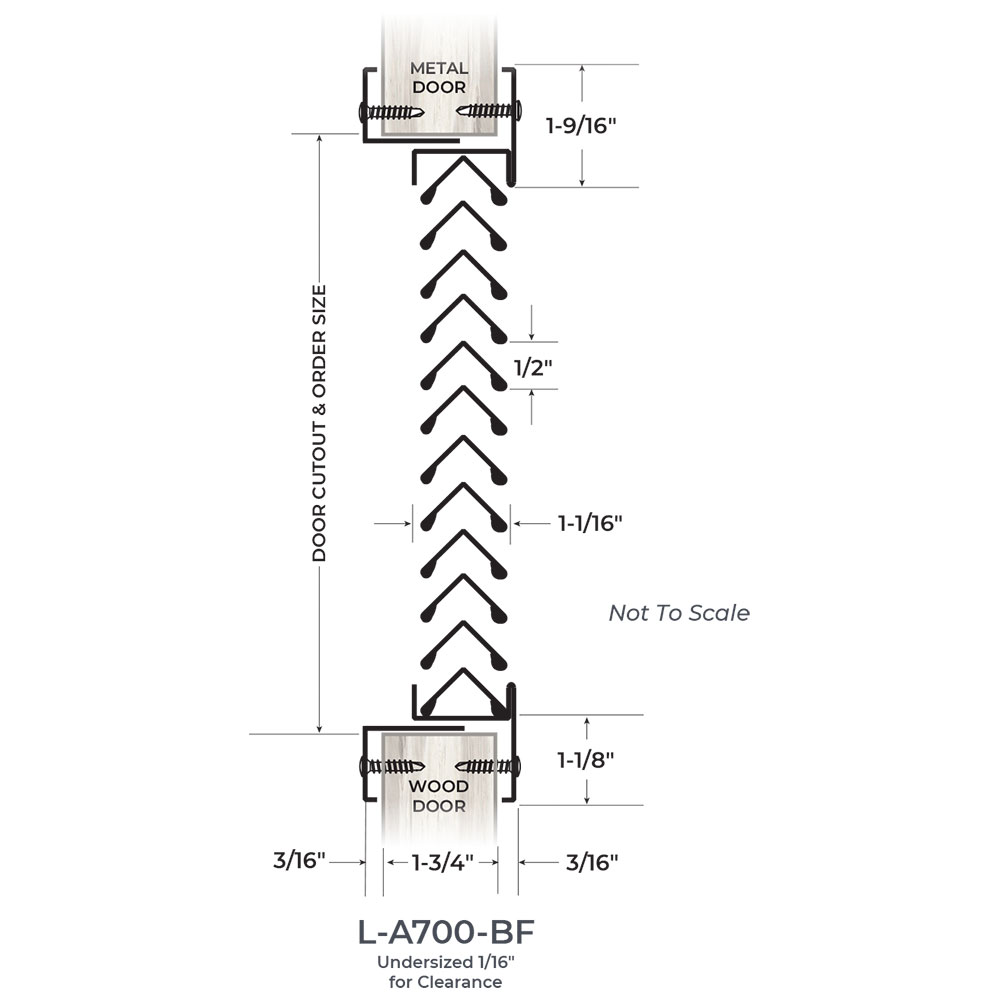

  • Inverted “V” Design
  • Countersunk Mounting Screw-Holes
  • #8 X 3/4″ Phillips Head SMS
  • Available in Uneven and Fractional Sizes
  • Free Area 55%
  • Aluminum Silver (ASL) Powder Coat Finish
  • Undersized 1/16″ for Clearance

made-in-usa

Brand

Finishes

ASL – Aluminum Silver

Size

12" x 12", 18" x 12", 18" x 18", 18" x 60", 18" x 64", 24" x 12", 24" x 18", 24" x 24", 24" x 60", 24" x 64", 24" x 72"

Material

Aluminum

Door Thickness

1-3/8" to 2-1/4"

Free Flow Area

55% Free Area

Fasteners

#8 x 3/4" Flathead Phillips SMS – Included

Fire Rating

None

Warranty

5 Year

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
