NGP-L-FRA100-RD
NGP-L-FRA-100
NGP-L-FRA100-RD
NGP-L-FRA-100

NGP (National Guard) L-FRA100-RD Round Vision Lite Frame for 3/16″, 1/4″ or 5/16″ Glass, 1-3/4″ Thick Door

Usually Ships: 10-20 Business Days
  • 18-Gauge Steel Circular Frame
  • For 3/16″, 1/4″ or 5/16″ Thick Glass (Not Included)
  • For 1-3/4″ Thick Steel or Wood Doors

Available Options:

Product Overview

NGP L-FRA100-RD Round Lite Kit Frame for 1-3/4″ Thick Doors

Designed for use with 1-3/4″ thick doors.

  • Circular vision lite frame (no glass included)
  • Glass / Glazing Tape Not Included

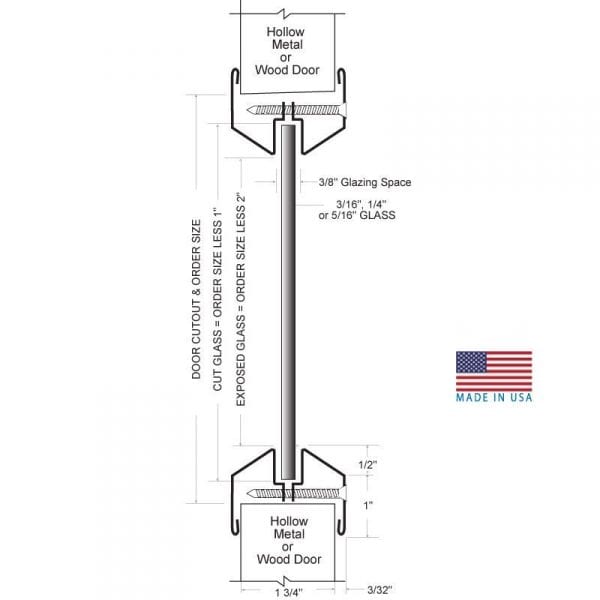

  • Order size equal to cutout size  (12″, 18″ or 24″ Diameter)
  • Glass size is 1″ under cutout size, Visible glass is 2″ under
  • Countersunk Mounting Screw-Holes

Brand

Finishes

DKB – Dark Bronze, GPZ – Gray Primer, MBL – Matte Black, W – White
Order Size

12" Round, 18" Round, 24" Round
Frame Construction

18 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1-3/4" Phillips head SMS
Glass Thickness

3/16", 1/4" or 5/16"
Door Thickness

1-3/4"
Fire Rating

UL Certified – Up to 3 Hours in Metal Doors and 90 Minutes in Wood Doors
