NGP (National Guard) L-FRA100-SP-138 Vision Lite Kit Pack with 1/4″ Clear Tempered Glass for 1-3/8″ Thick Door

Usually Ships: 10-20 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes impact-rated safety glass
  • For 1-3/8″ thick doors only

Available Options:

National Guard Products L-FRA100-SP-138 Low Profile Lite Kit for 1-3/8″ Thick Doors with 1/4″ Tempered Glass and GT-118 Glazing Tape

  • For non-commercial or light commercial 1-3/8″ thick doors only (commercial doors are typically 1-3/4″ thick)
  • Recommended for use with solid core doors
  • Mitered and welded corners with countersunk mounting holes

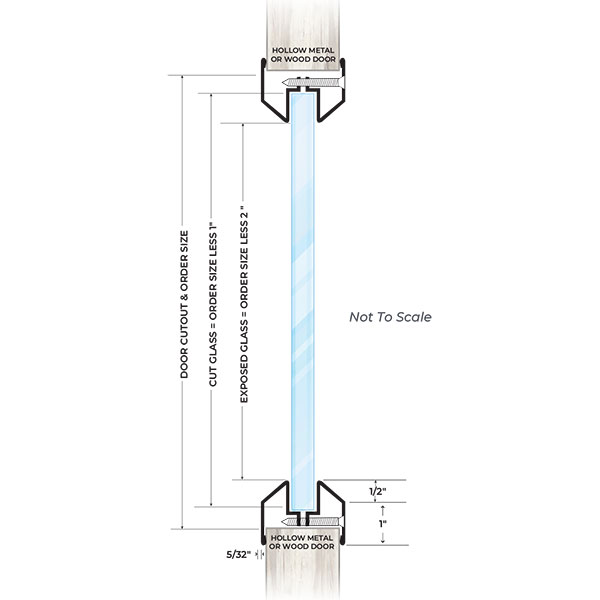

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes 1/4″ Clear Tempered – CAT II Impact-Rated (Safety Glass) – Heat-treated clear safety glass that breaks into small particles
  • Tempered Glass – Four Times Stronger Than Annealed Glass
  • Gray Primer (GPZ) Powder Coat finish frame

Tempered glass is recommended for all non-fire-rated doors

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finish

Gray Primed

Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 8" x 36", 12" x 12", 18" x 18", 18" x 24", 18" x 30", 18" x 32", 18" x 60", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64"

Frame Profile

Low

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Type

Clear Tempered Glass

Glass Thickness

1/4"

Glass Appearance

Clear

Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Glass Light Transmission

Approx. 86%

Glass Fire-Rating

None

Door Thickness

1-3/8"

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
