NGP (National Guard) L-FRA100-SP STC Sound Rated Vision Lite Frame for 1″ Thick Glass, 1-3/4″ Thick Door

Usually Ships: 5-10 Business Days

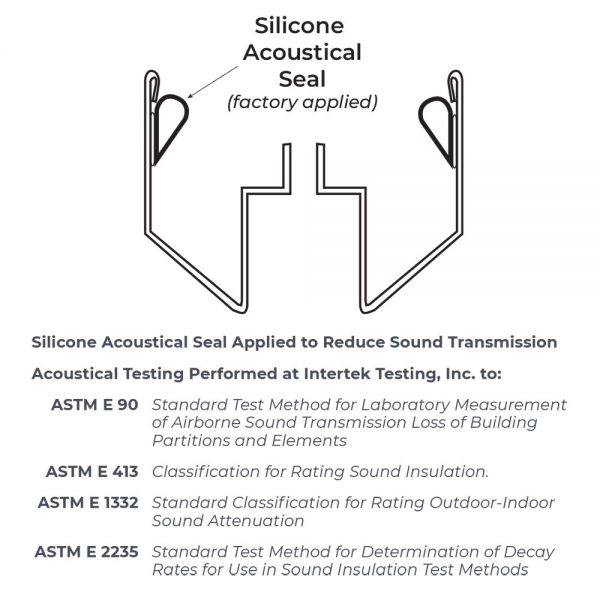

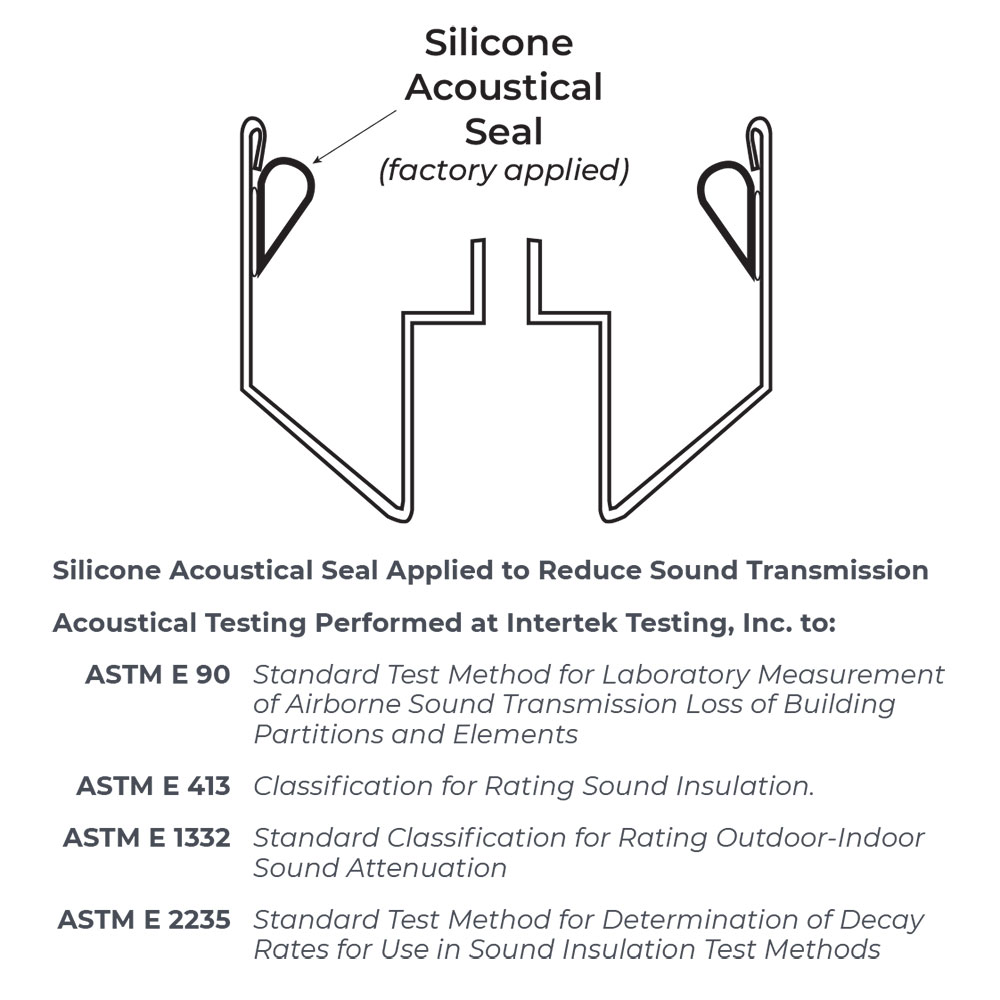

  • Silicone acoustical seal applied to reduce sound transmission
  • For 1″ glass (not included)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Product Overview

NGP (National Guard Products) L-FRA100-SP Low Profile STC Sound Rated Lite Kit for 1-3/4″ Thick Doors and 1″ Glass

ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of the NGP Gasketing catalog for test result data.

  • Silicone Acoustical Seal Applied to Reduce Sound Transmission
  • Mitered and welded corners with countersunk mounting holes
  • Welded reinforcing clips at corners
  • #8 Phillips Head SMS
  • Designed for 1-3/4″ Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16″
  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included – 1″ thick insulated glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.





Custom features at additional cost and lead time (2-4 Weeks):

  • Custom sizes: Minimum 3″ width or height; maximum 88″ width or height
  • Special powder coat colors: (Gloss Black, Walnut Brown (matches Timely Browntone) and Magnolia White (matches Timely Western White)
  • Galvanneal or Aluminum Material
  • Lead Lining

Call us at 1-844-878-3667 to order custom vision lite frames

Brand

Finishes

ASL – Aluminum Silver, B – Brass, BPR – Beige Primer, DKB – Dark Bronze, GPZ – Gray Primer, MBL – Matte Black, T – Tan, W – White
Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 32", 12" x 12", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 60", 24" x 64"
Frame Profile

Low
Frame Construction

18 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included
Glass Thickness

1"
Door Thickness

1-3/4"
Fire Rating

UL Certified – Up to 3 Hours in Metal Doors and 90 Minutes in Wood Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
