Product Overview

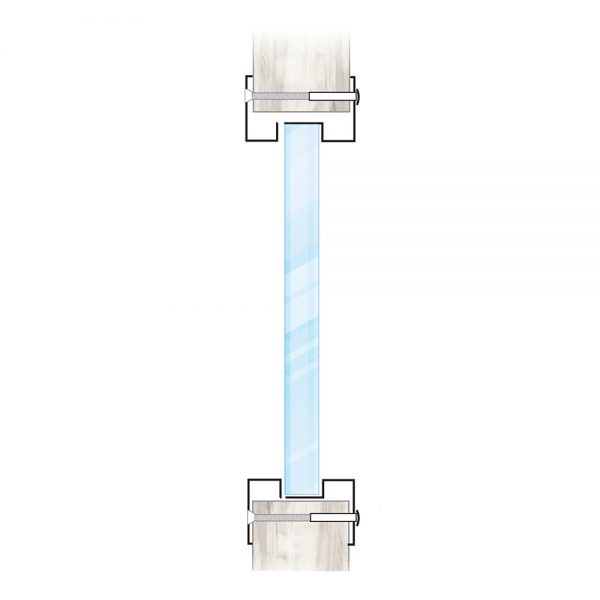

NGP L-GLF100-TB Thru-Bolted Vision Lite Frame for 1-3/4″ Thick Doors and 3/16″ to 5/16″ Glass
- For 1-3/4″ Thick Doors and 3/16″, 1/4″, or 5/16″ Glass
- 18 Ga. Cold Rolled Steel
- Mitered and Welded Corners
- Welded Reinforcing Clips at Corners
- Countersunk Mounting Screw-Holes
- Thru-Bolts for 1-3/4″ Door
- Door Prep Requires Square Cut Corners
- Gray Primer (GPZ) Powder Coat Finish
- Designed for Use on 1-3/4″ Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16″

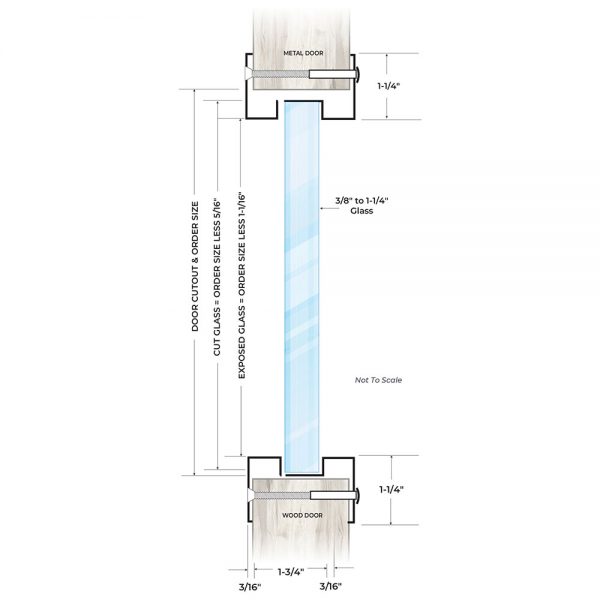

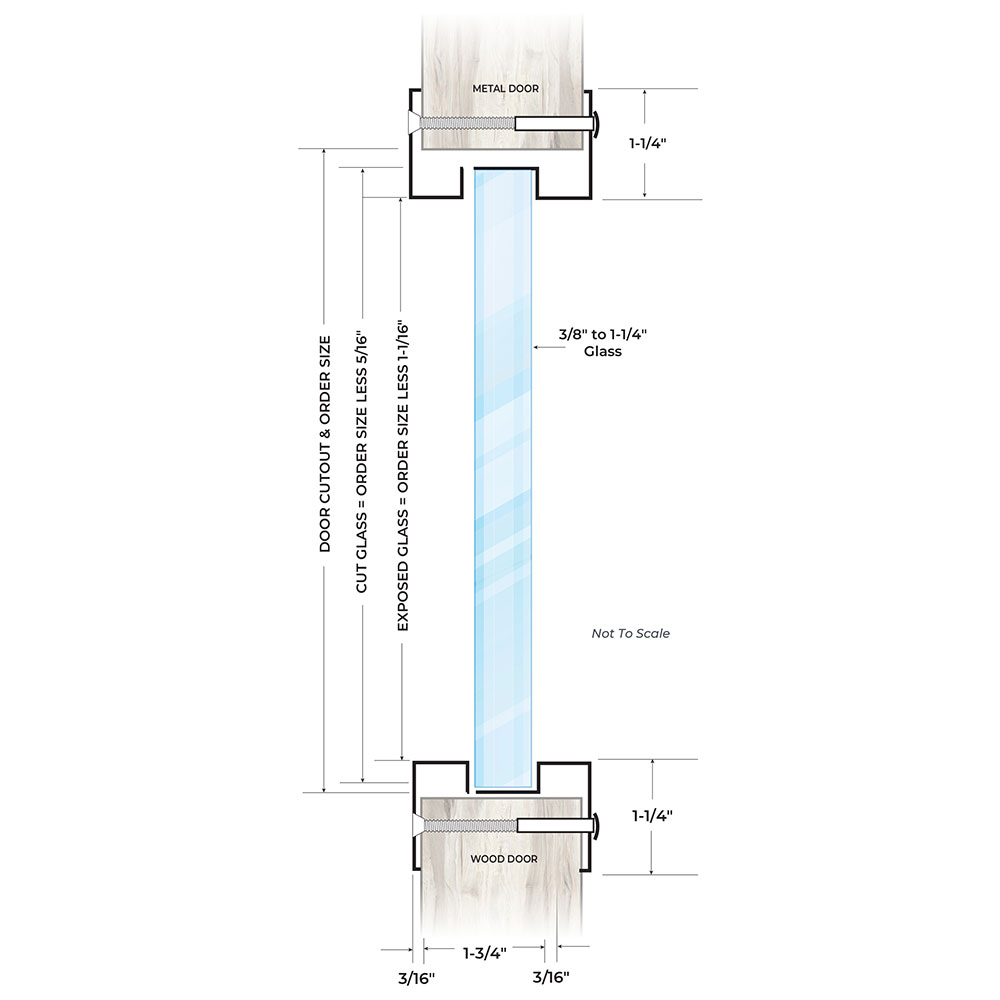

- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Glass / Glazing Tape Not Included – 1″ thick insulated glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
- Fire-rated up to 3 hours
| Brand | |
|---|---|
| Finishes | GPZ – Gray Primer |
| Order Size | 5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 8" x 36", 12" x 12", 18" x 18", 18" x 24", 18" x 30", 18" x 32", 18" x 60", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64" |
| Frame Profile | Standard |
| Frame Construction | 18 Gauge Cold Rolled Steel |
| Frame Fasteners | Thru-Bolts for 1-3/4" Door |
| Frame Fire-Rating | 3 Hour – Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure – WHI Listed |
| Glass Thickness | 3/16", 1/4" or 5/16" |
| Door Thickness | 1-3/4" |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
