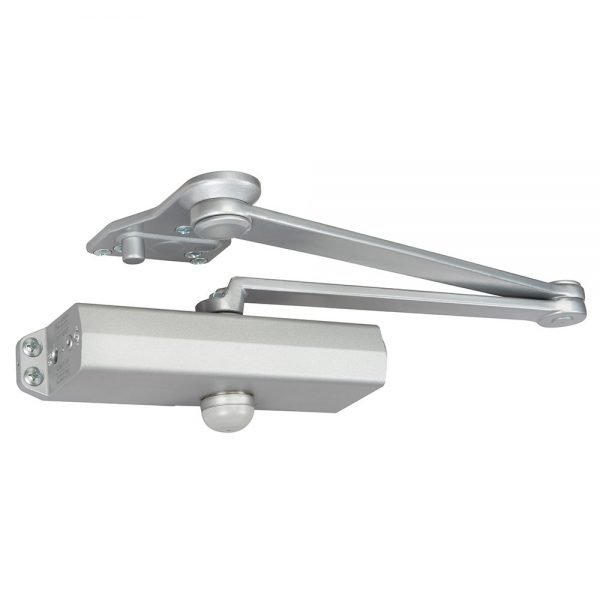

Norton CLP1601 Door Closer with CloserPlus Parallel Stop Arm

Usually Ships: 1-2 Business Days

ANSI/BHMA A156.4, Grade 1 certified
Includes CloserPlus® dead stop arm
Parallel arm mounting

Available Options:

Finish

Clear

Quantity:

Norton CLP1601 Grade 1 Closer Plus Parallel Arm Door Closer, Push Side, Parallel Arm Mount, Adjustable Size 1 to 6

This arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° to 110°, in 5° increments. Prior to dead stop the door closer’s backcheck feature slows the door speed to reduce the impact of the stop action. The CloserPlus Arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated.

Parallel arm mounting
Exceeds 25 million cycles (independently verified) for long life and fewer replacements
One-piece, heavy-duty cast aluminum body
High strength aluminum alloy closer body provides for long life
Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

ANSI/BHMA A156.4, Grade 1 certified
UL / cUL listed for use on fire-rated doors
UL10C listed for positive pressure fire test
Meets requirements for Americans with Disabilities Act

Brand	Norton
Finishes	689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated)
Usage	Standard Duty
Templating (Hole Pattern)	3/4" x 9-1/16"
ANSI/BHMA Standard	ANSI/BHMA A156.4, Grade 1 certified
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Body Construction	Cast Aluminum Body
Spring Size	Adjustable Spring Size 1-6
Handing	Non-Handed
Cover	None
Mounting Options	Parallel Arm (Push Side)
Fire Rating	UL and cUL Listed – up to 3 Hours
Warranty	30 Years
