Norton CLP7500T Door Closer with CloserPlus Parallel Hold Open Arm

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade 1 certified
  • Includes CloserPlus hold open arm
  • Parallel arm mount only, handle controls hold-open function

Available Options:

Product Overview

Norton CLP7500T Grade 1 Closer Plus Parallel Arm T Turn Hold Open Door Closer, Push Side, Parallel Arm Heavy Duty, Size 1 to 6, Plastic Cover

This arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° to 110°, in 5° increments. Prior to dead stop the door closer’s backcheck feature slows the door speed to reduce the impact of the stop action. The CloserPlus Arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated. Hold open strength is adjustable.

  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
Brand

Finishes

689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP Black Suede Powder Coat
Templating (Hole Pattern)

2-3/8" x 6-3/4"
Usage

Heavy Duty
Mounting Options

Parallel Arm (Push Side)
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Cover

Full Cover
Handing

Non-Handed
Door Application

Hollow Metal or Wood
Warranty

30 Years
Norton 7500 Series Door Closer, CLP7500, CLP7700, CloserPlus, Parallel Rigid, Non-Hold Open or Hold Open Installation Instructions

Related Products

  • Norton-CPS7500T-689

    Norton - CPS7500T Door Closer with CloserPlus Parallel Spring Stop Hold Open Arm

    Multiple Finishes
    $393.17
    Usage: Heavy Duty
  • corbin-russwin-dc6210-A5-689-door-closer

    Corbin Russwin - DC6210 A5 M54 Door Closer w/ Heavy-Duty Parallel Arm with Backstop and Hold Open

    Multiple Finishes
    $444.81
    Usage: Heavy Duty
  • Norton-CLP7500-689

    Norton - CLP7500 Door Closer with CloserPlus Parallel Stop Arm

    Multiple Finishes
    Starting at: $279.18
    Usage: Heavy Duty
  • Yale-5821T-689

    Accentra (Formerly Yale) - 5821T Door Closer with Heavy Duty Hold Open Parallel Arm and Stop

    Multiple Finishes
    Starting at: $206.50
    Usage: Heavy Duty
  • norton-7500h-689

    Norton - 7500H Door Closer with Hold Open Arm

    Multiple Finishes
    Starting at: $271.59
    Usage: Heavy Duty

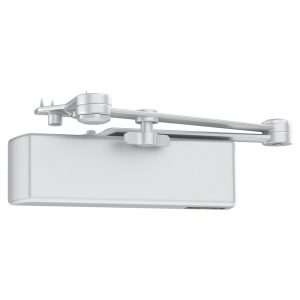

  • tdc-400-hp
