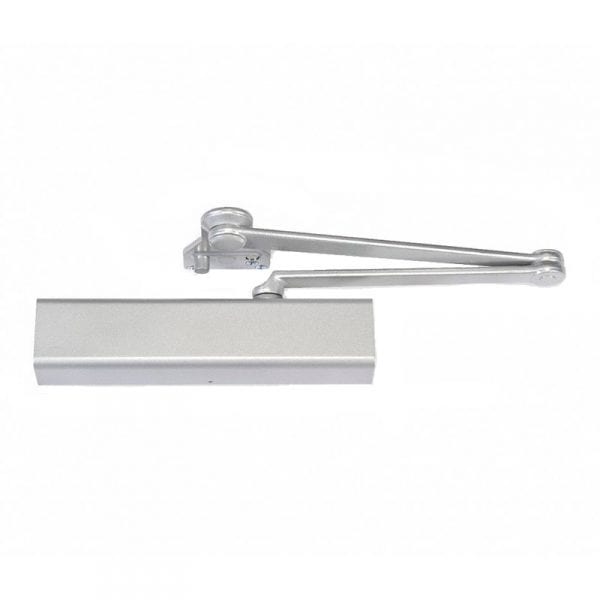

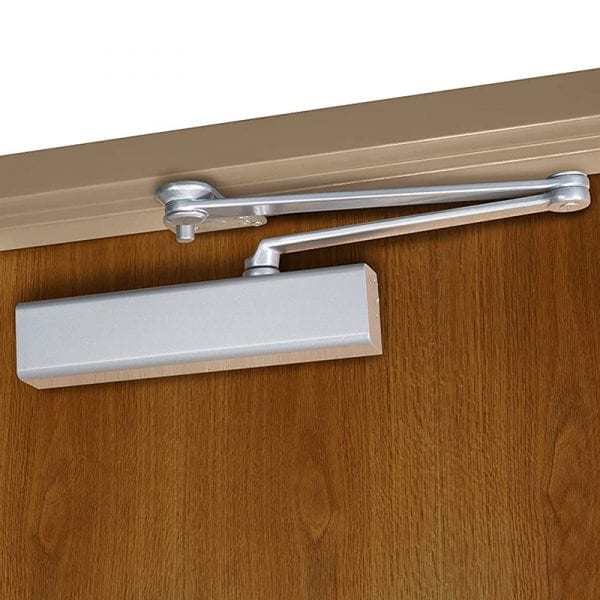

Norton CLP8501 Door Closer with CloserPlus Parallel Stop Arm

Usually Ships: 1-2 Business Days

ANSI/BHMA Grade 1 certified
Includes CloserPlus® dead stop arm
Parallel arm mounting

Available Options:

Finish

Clear

Quantity:

Norton CLP8501 Grade 1 Closer Plus Parallel Arm Door Closer, Push Side, Parallel Arm Heavy Duty, Adjustable Size 1 to 6, Plastic Cover

This arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° to 110°, in 5° increments. Prior to dead stop the door closer’s backcheck feature slows the door speed to reduce the impact of the stop action. The CloserPlus Arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated. Where more extreme conditions are expected, use of a Unitrol arm is recommended.

Exceeds 15 million cycles (witnessed and verified by UL)
Adjustable spring sizes 1 through 6
Parallel arm mounting
Non-handed
Staked valves
Cast aluminum body

CERTIFICATIONS

ANSI/BHMA A156.4, Grade 1 certified
UL / cUL listed for use on fire-rated doors
UL10C listed for positive pressure fire test
Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
This product is manufactured in an ISO 9001, ISO 14001 facility

Brand	Norton
Finishes	689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP Black Suede Powder Coat
Templating (Hole Pattern)	3/4" x 12"
Usage	Medium Duty
Mounting Options	Parallel Arm (Push Side)
Body Construction	Cast Aluminum Body
Spring Size	Adjustable Spring Size 1-6
Door Applications	Hollow Metal, Wood or Aluminum
Handing	Non-Handed
ANSI/BHMA Standard	ANSI/BHMA A156.4, Grade 1 certified
Fire Rating	UL Listed – UL10c compliant for positive pressure
Cover	Full Cover
