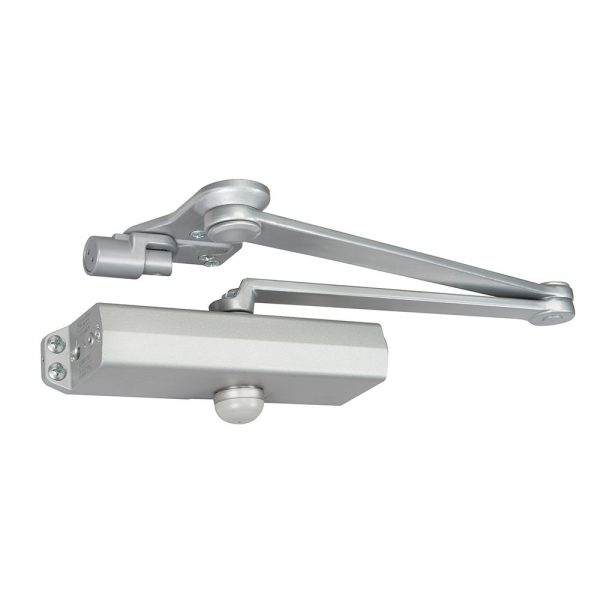

Norton CPS1601 Door Closer with CloserPlus Spring Stop Parallel Arm

Usually Ships: 1-2 Business Days

ANSI/BHMA A156.4, Grade 1 certified
Includes CloserPlus® spring stop arm
Parallel arm mounting

Available Options:

Finish

Clear

Quantity:

Norton CPS1601 Grade 1 Door Closer, Push Side, CloserPlus Spring Arm, Parallel Arm Mount, Adjustable Size 1 to 6

Arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments. An additional steel buffer spring provides greater protection at the end of the door opening cycle.

Parallel arm mounting
Exceeds 25 million cycles (independently verified) for long life and fewer replacements
One-piece, heavy-duty cast aluminum body
High-strength aluminum alloy closer body provides for long life
Independent latch, sweep, and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

ANSI/BHMA A156.4, Grade 1 certified
UL / cUL listed for use on fire-rated doors
UL10C listed for positive pressure fire test
Meets requirements for Americans with Disabilities Act

Brand	Norton
Finishes	689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP Black Suede Powder Coat
Usage	Standard Duty
Templating (Hole Pattern)	3/4" x 9-1/16"
ANSI/BHMA Standard	ANSI/BHMA A156.4, Grade 1 certified
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Body Construction	Cast Aluminum Body
Spring Size	Adjustable Spring Size 1-6
Handing	Non-Handed
Cover	None
Mounting Options	Parallel Arm (Push Side)
Fire Rating	UL and cUL Listed – up to 3 Hours
Warranty	30 Years
