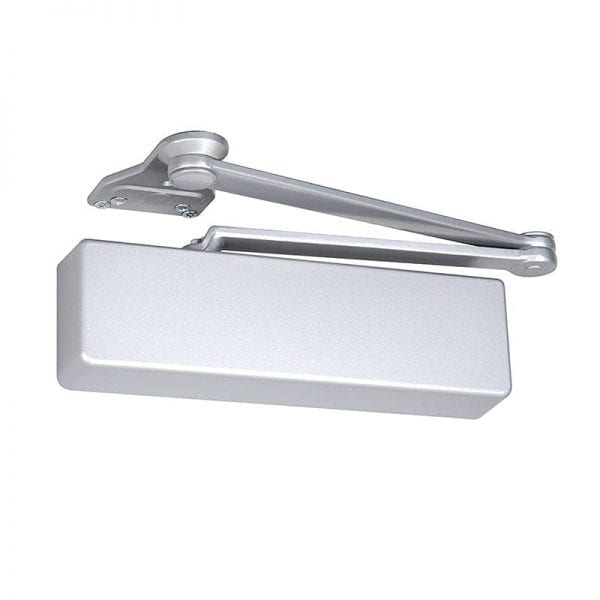

Norton PR7500 Door Closer with Parallel Rigid Arm

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade 1 certified
  • Includes heavy-duty parallel rigid arm
  • Parallel arm mounting

Available Options:

Clear

Product Overview

Norton 7500 Grade 1 Parallel Arm Door Closer, Push Side, Parallel Arm Rigid, Size 1 to 6

An enhanced variation of the standard parallel arm assembly that is intended for use in heavy traffic areas where auxiliary door stops are installed.

  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
Brand

Finishes

689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP Black Suede Powder Coat
Templating (Hole Pattern)

2-3/8" x 6-3/4"
Usage

Heavy Duty
Mounting Options

Parallel Arm (Push Side)
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and cUL Listed – up to 3 Hours
Cover

Full Cover
Handing

Non-Handed
Door Application

Hollow Metal or Wood
Warranty

30 Years
Norton 7500 Series Door Closer, CLP7500, CLP7700, CloserPlus, Parallel Rigid, Non-Hold Open or Hold Open Installation Instructions
