Pemko 159_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert – 3-5/8″ Wide x 7/8″ High

Usually Ships: 5-10 Business Days

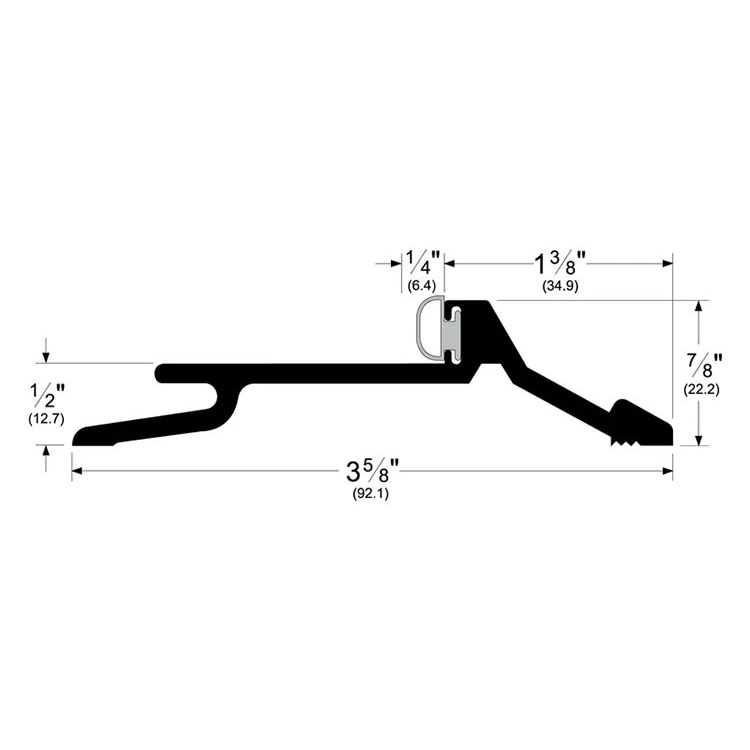

  • 3-5/8″ Wide x 7/8″ High
  • Fire-rated, sound, and air infiltration tested
  • Also can be used as interlock threshold

Available Options:

Pemko 159_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert

The 159 Series Latching Panic Saddle Threshold is a versatile solution suitable for use as an exit threshold during panic situations or as an interlock threshold. Specifically designed for compatibility with surface-applied vertical rod exit devices and doors equipped with double-sealed bumpers. This ensures a comprehensive seal against the door face, effectively blocking sound, air infiltration, wind, and debris, with added protection provided by the integrated “J” hook feature.

Finishes

  • 159AV: A – Mill Finish Aluminum Aluminum with Eco-V Seal insert
  • 159BSPV: BSP – Black Suede Powder Coat Aluminum with Eco-V Seal insert
  • 159DV: D – Dark Bronze Anodized Aluminum with Eco-V Seal insert

Ratings

  • Air Infiltration Tested
  • Sound Tested – ASTM E90
  • BHMA Certified
  • Fire Rated – UL10C – Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

36", 48", 72", 96"

Width

3-5/8"

Height

7/8"

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
