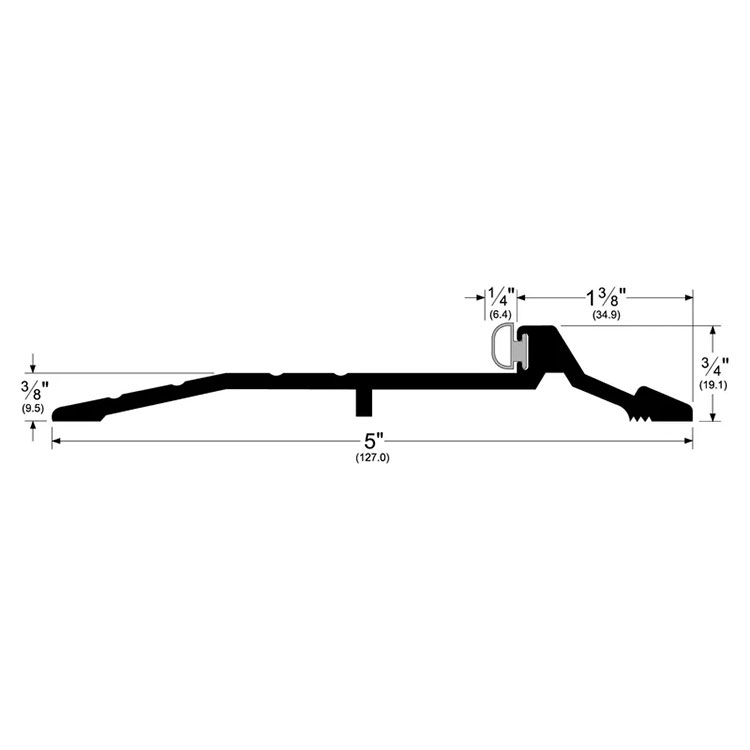

Pemko 179_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert – 5″ Wide x 3/4″ High

Usually Ships: 5-10 Business Days
  • 5″ Wide x 3/4″ High
  • Fire-rated, sound, and air infiltration tested
  • Black sponge silicone insert

Available Options:

Product Overview

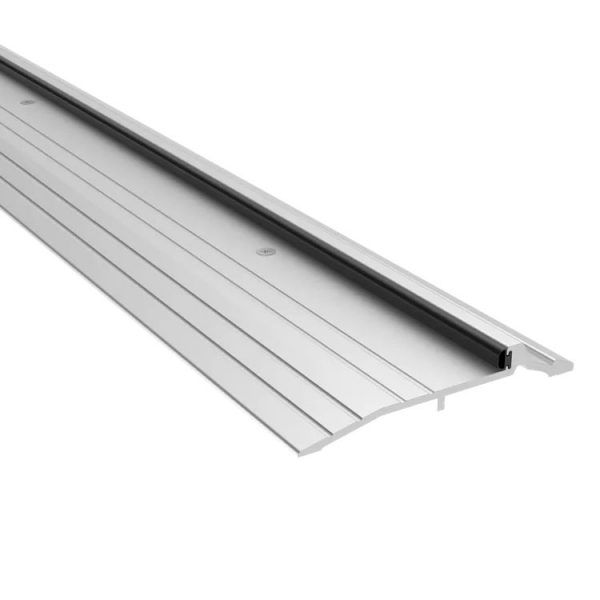

Pemko 179_V Latching Panic Saddle Threshold with Eco-V Insert

The 179 Series Latching Panic Saddle Threshold has a 5″ width and allows for a 1/2″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket Eco-V (V) vinyl. This threshold is sound, air infiltration tested, fire rated, and BHMA certified.

Finishes

  • 179AV: A – Mill Finish Aluminum Aluminum
  • 179BSPV: BSP – Black Suede Powder Coat
  • 179DV: D – Dark Bronze Anodized Aluminum

Ratings

  • Air Infiltration Tested
  • Sound Tested – ASTM E90
  • BHMA Certified
  • Fire Rated – UL10C – Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length

36", 48", 72", 96"
Width

5"
Height

3/4"
Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
