Pemko 181_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert – 5″ Wide x 1″ High

Usually Ships: 5-10 Business Days
  • 5″ Wide x 1″ High
  • Air infiltration tested and fire-rated
  • Includes Eco-V® insert

Available Options:

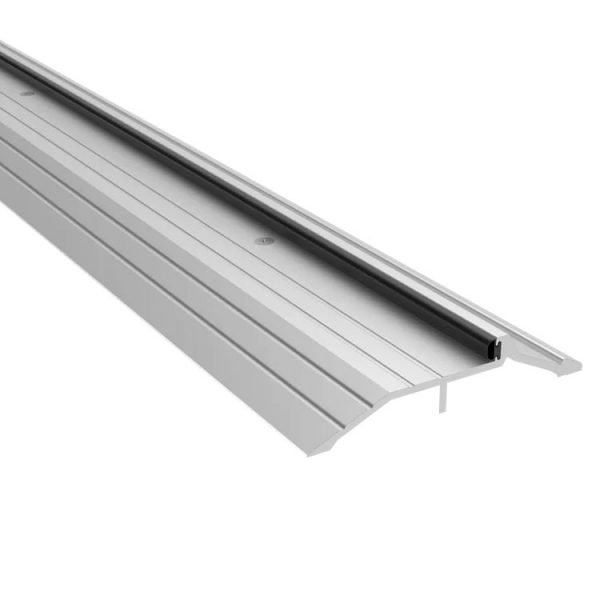

Pemko 181_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert

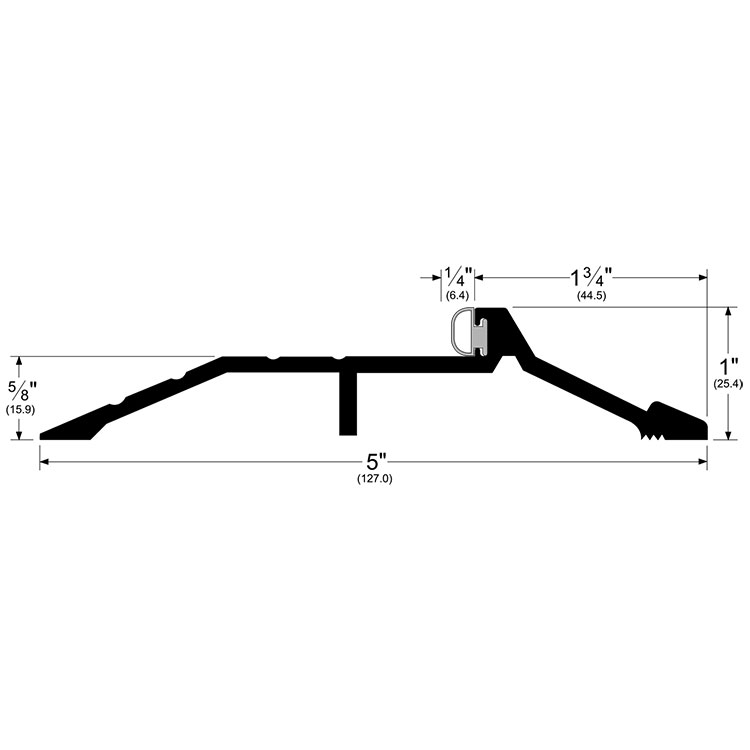

The 181 Series Latching Panic Saddle Threshold has a 5″ width and allows for a 3/4″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket Eco-V (V). This threshold is sound, air infiltration tested, fire rated, and BHMA certified.

  • 181AV: A – Mill Finish Aluminum Aluminum with Eco-V® insert
  • 181BSPV: BSP – Black Suede Powder Coat with Eco-V® insert
  • 181DV: D – Dark Bronze Anodized Aluminum with Eco-V® insert

Ratings

  •  BHMA Certified
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  • Air Infiltration Tested
  • GREENGUARD Gold Certified
Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

36", 48", 72", 96"

Width

5"

Height

1"

ANSI/BHMA Standard

ANSI/BHMA A156.2

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
