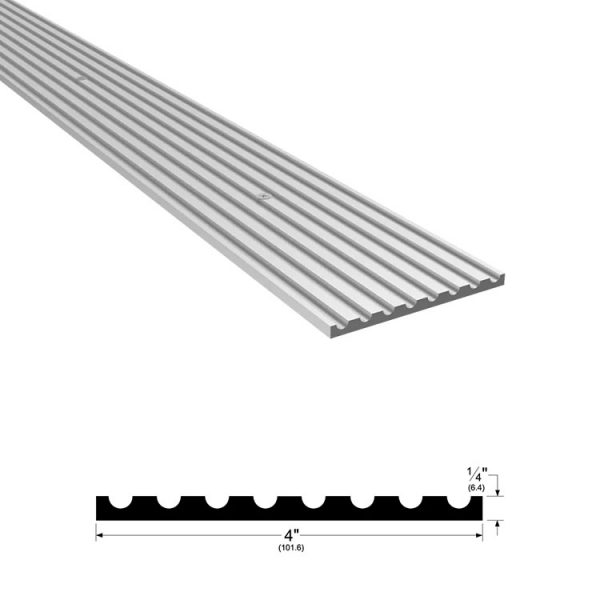

Pemko 192 Floor Plate with Safety Tread – 4″ Wide x 1/4″ High

Usually Ships: 5-10 Business Days
  • 4″ Wide x 1/4″ High
  • Barrier-Free, ADA Compliant
  • Fire-Rated up to 3 Hours

Available Options:

Pemko 192_ Floor Plate with Safety Tread 4″ W x 1/4″H

The 192 Floor Plate with Safety Tread is 4″ wide threshold plate designed to prevent tripping and provide a safe transition between different flooring levels. The floor plate is fire-rated, BHMA certified.

  • Used as a transition
  • Furnished undrilled

Certifications

  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Americans with Disabilities Act (ADA) Compliant
  • ANSI/BHMA A117.1
  • ANSI/BHMA A156.21 Thresholds

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

36", 48", 72", 96"

Width

4"

Height

1/4"

ANSI/BHMA Standard

ANSI/BHMA A156.21

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
