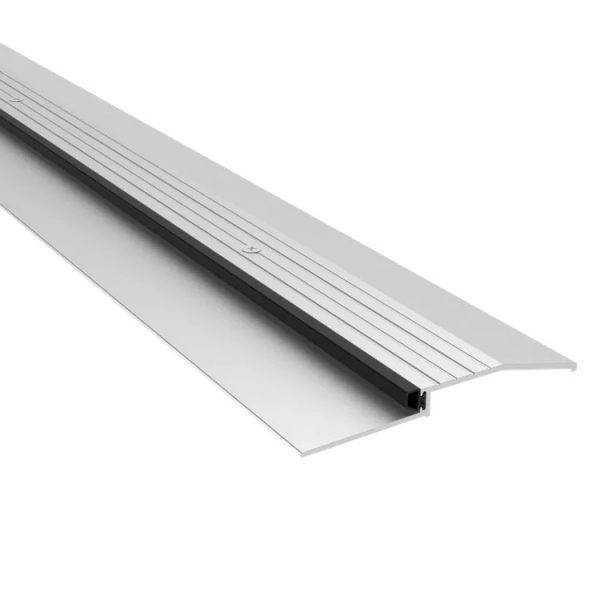

Pemko 2001_T Latching Panic Saddle Threshold with ThermoSeal Insert – 5″ Wide x 1/2″ High

Usually Ships: 5-10 Business Days

5″Wide x 1/2″High
ADA compliant and fire-rated
ThermoSeal insert helps with acoustic performance

Available Options:

Finish

Length

Clear

Quantity:

Pemko 2001_T Latching Panic Saddle Threshold with ThermoSeal Insert

The 2001 Series Latching Panic Saddle Threshold has a 5″ width and allows for a 1/4″ door clearance for use on a low 1/4″ to 3/8″ undercut door. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket ThermoSeal (T). This threshold is sound, air infiltration tested, and fire rated.

ThermoSeal insert helps with acoustic performance
Allow 1/4″ door clearance
Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length

TYPE: Latching Panic Exit Threshold
MATERIAL:6063-T6 Aluminum Alloy and Temper Retainer
WIDTH: 5” (127.0 mm)
HEIGHT: 1/2” (12.7 mm)
LENGTHS: 36″, 48″, 72″ and 96″

Finishes

2001AT: A – Mill Finish Aluminum Aluminum with Black Thermo Seal insert
2001BSPT: BSP – Black Suede Powder Coat with Black Thermo Seal insert
2001DT: D – Dark Bronze Anodized Aluminum with Black Thermo Seal insert

Ratings

Air Infiltration Tested
Sound Tested – ASTM E90
Barrier-Free
BHMA Certified
Fire Rated – UL10C – Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

Brand	Pemko
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length	36", 48", 72", 96"
Width	5"
Height	1/2"
ANSI/BHMA Standard	ANSI/BHMA A156.2
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	Up to 3 Hours with metal doors; 90 minutes with wood doors
