Product Overview

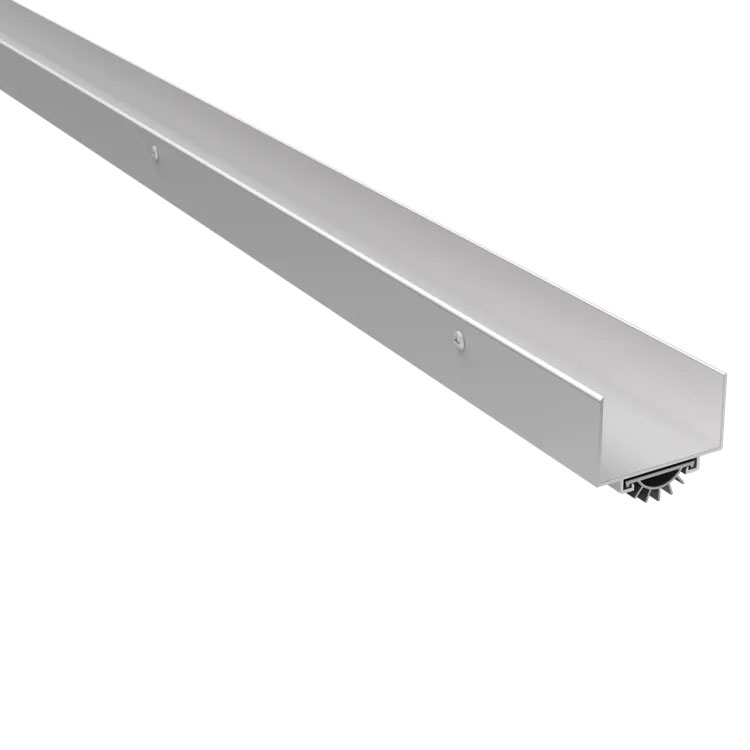

Pemko 217_V U-Shaped Door Shoe with Eco-V Insert
The 217 Series U-Shaped Door Shoe is designed to protect and seal the bottom of 1.75″ thick doors. It fills gaps of up to half an inch and provides insulation against sound and light. The door shoe is fire and smoke rated. The Pemko 217_V door shoe is supplied with a Eco-V® (“V”) insert.

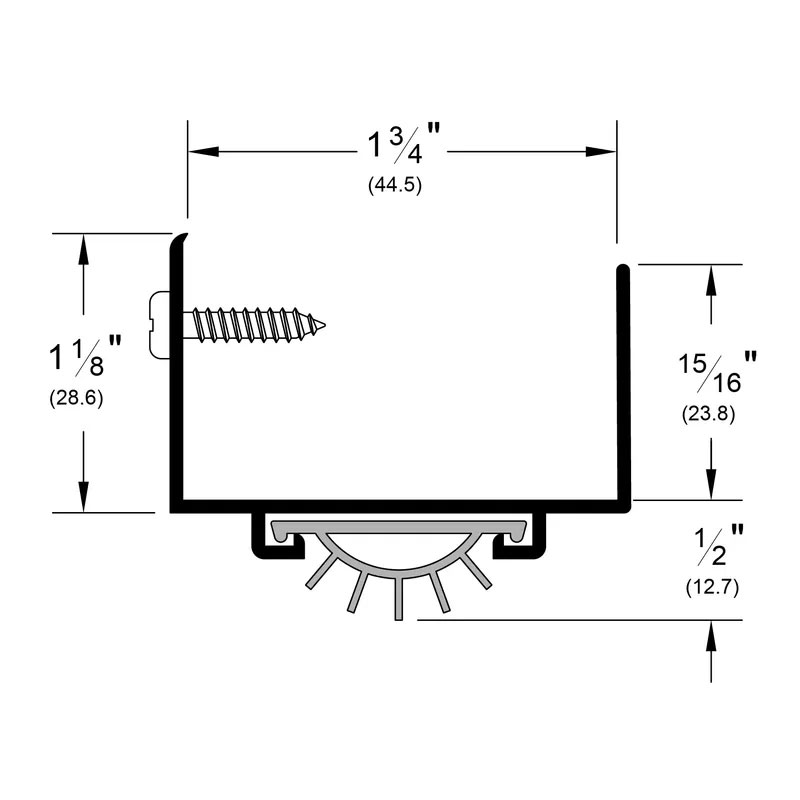

- WIDTH: 1-3/4” (44.5 mm)
- PROFILE HEIGHT 1: 1-1/8” (28.6 mm)
- PROFILE HEIGHT 2: 1” (25.4 mm)
- TOTAL HEIGHT WITH INSERT: Approx. 1-5/8” (41.3 mm)
Finishes
- 217AV: A – Mill Finish Aluminum with Gray Eco-V insert
- 217BSPV: BSP – Black Suede Powder Coat Aluminum with Black Eco-V insert
- 217DV: D – Dark Bronze Anodized Aluminum with Black Eco-V insert
Ratings
- Smoke Tested – UL1784
- Fire Rated – UL10C – Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
| Length | 36", 48" |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
