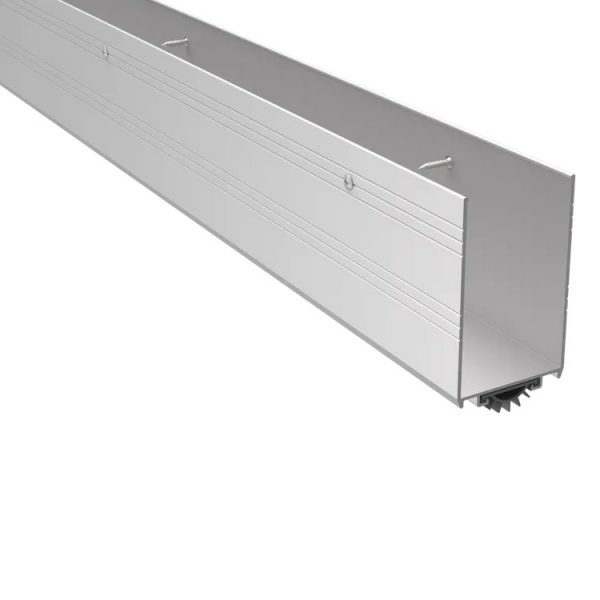

Pemko 221_V U-Shaped Combination Door Shoe and Kick Plate with Eco-V Vinyl Insert

Usually Ships: 1-2 Business Days

Combination door shoe and kick plate
Fire-rated and smoke tested
Air infiltration tested

Available Options:

Finish

Length

Clear

Quantity:

Pemko 221_V U-Shaped Combination Door Shoe and Kick Plate with Eco-V Insert

The 221 Series U-Shaped door Shoe with combination kick plate provides added protection to your door. It seals gaps up to .5″ at the bottom of the door, protecting against traffic abuse and restoring badly damaged doors. The casing extends up the face and back of the door 3″, ideal for doors 1.75″ in width. It features an Eco-V Fingered insert for proper sealing and flexibility in extreme weather.

This door shoe is supplied with a Eco-V^® (“V”) insert

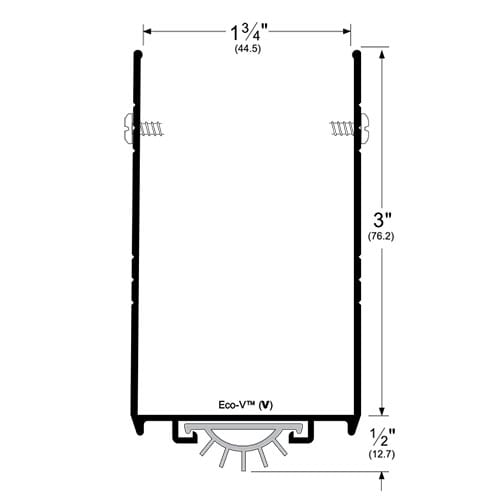

WIDTH: 1-3/4” (44.5 mm)
PROFILE HEIGHT 1: 3” (76.2 mm)
TOTAL HEIGHT WITH INSERT: Approx. 3-1/2” (89.0 mm)

Finishes

221AV: A – Mill Finish Aluminum with Gray Eco-V insert
221BSPV: BSP – Black Suede Powder Coat with Black Eco-V insert
221DV: D – Dark Bronze Anodized Aluminum with Black Eco-V insert
221WSPV: BSP – White Suede Powder Coat with Black Eco-V insert

Ratings

Air Infiltration Tested
Sound Tested – ASTM E90
BHMA Certified
Smoke Tested – UL1784
Fire Rated – UL10C – Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

Brand	Pemko
Length	36", 48"
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat, WSP White Suede Powder Coat
Fire Rating	Fire Rated – UL10C – Positive Pressure
