Pemko 228 Floor Plate with Safety Tread – 8″ Wide x 1/4″ High

Usually Ships: 5-10 Business Days

8″ Wide x 1/4″ High
Barrier-Free, ADA Compliant
Fire-Rated up to 3 Hours

Available Options:

Finish

Length

Clear

Quantity:

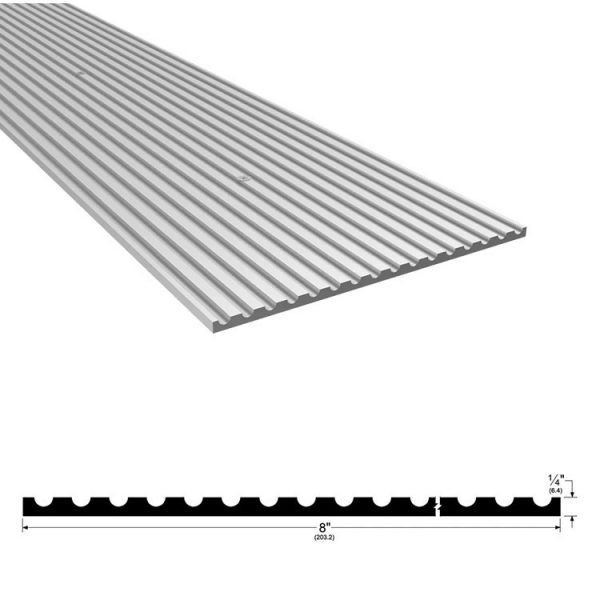

Pemko 228_ Floor Plate with Safety Tread, 8″ W x 1/4″H

The 228 Floor Plate with Safety Tread is 8″ wide threshold plate designed to prevent tripping and provide a safe transition between different flooring levels. The floor plate is fire-rated, BHMA certified.

Used as a transition
Furnished undrilled

Certifications

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
Americans with Disabilities Act (ADA) Compliant
ANSI/BHMA A117.1
ANSI/BHMA A156.21 Thresholds

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand	Pemko
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length	36", 48", 72", 96"
Width	8"
Height	1/4"
ANSI/BHMA Standard	ANSI/BHMA A156.21
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	Up to 3 Hours with metal doors; 90 minutes with wood doors
