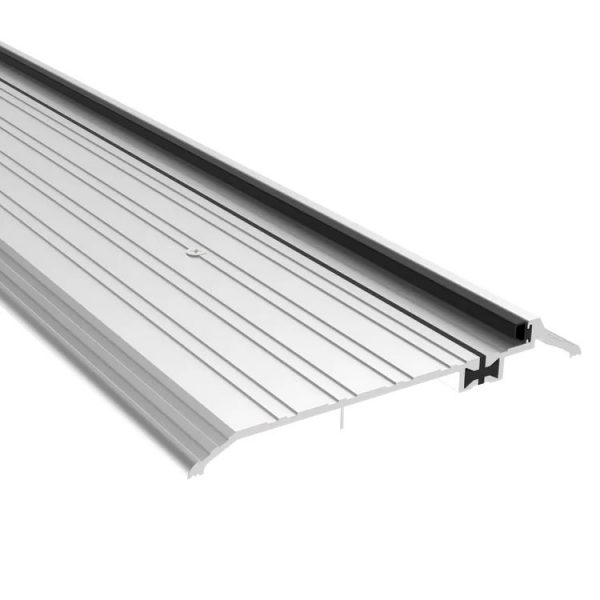

Pemko 255x226_FGT Thermal Barrier Latching Panic Saddle Threshold with Frost Guard and ThermoSeal Insert – 7-1/8″ Wide x 7/8″ High

Pemko 255x226_FGT Thermal Barrier Latching Panic Saddle Threshold with Frost Guard and ThermoSeal Insert – 7-1/8″ Wide x 7/8″ High

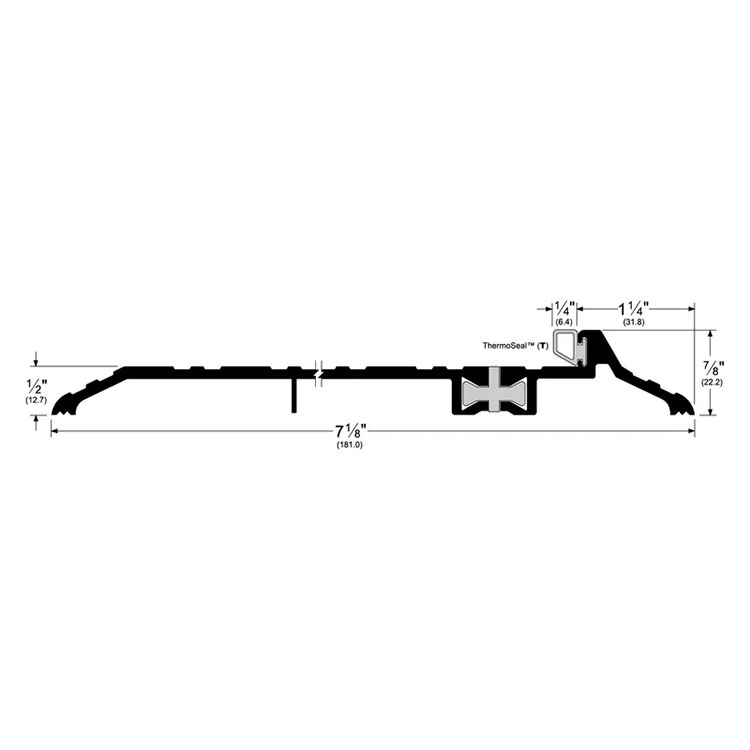

The 255×226 Series Latching Panic Saddle Threshold has a 7-1/8″ width (welded on the bottom) and allows for a 5/8″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket ThermoSeal (T) seal. This threshold is sound, air infiltration tested, fire rated, and BHMA certified. Enhancing thermal performance, a black rigid polypropylene key between these extrusions acts as a thermal break (FG-Frost Guard), minimizing the transfer of hot and cold temperatures.

• Used in conjunction with surface applied vertical rod exit device, or as a stop and a seal at the bottom of door
• Allow 5/8″ door clearance
• Welded on bottom
• Fire-rated
• Includes ThermoSeal insert
• Frost Guard for extra weather protection
• Polypropylene thermal break prevents conductivity of hot or cold from exterior to interior
• Significantly reduces heat and cold transfer lowering energy usage
• ADA accessible if butted to a 1/2″ offset
• Improves thermal performance by minimizing transfer of hot and cold temperatures
• Integrated stop provides excellent sealing at the bottom of the door
• Protects against sound, wind, debris, and more

Certifications

• GREENGUARD Gold Certified
• UL 10C positive pressure
• UL 4L10 listed
• ASTM E-283-04 (2012)
• ASTM E 90-2009
• ANSI/BHMA A156.21 Thresholds
