Pemko 256x6_ Saddle Threshold – 12″ Wide x 1/2″ High

Usually Ships: 5-10 Business Days

12″ Wide x 1/2″ High
Barrier-Free, ADA Compliant
Fire-Rated up to 3 Hours

Available Options:

Finish

Length

Clear

Quantity:

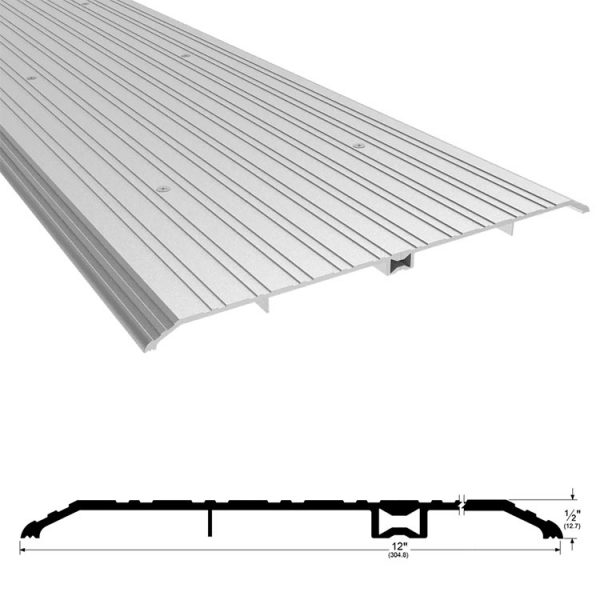

Pemko 256x6_ Fluted Saddle Threshold, 12″ W x 1/2″H

The 256×6 Series Flat Saddle Threshold is welded to achieve a 12″ width. It’s designed to span a given area, usually under a door. It has a height clearance of .5″ which aids in insulating a room and creates a smooth transition between two floor surfaces. It’s barrier-free, fire-rated, and certified by BHMA and UL10C.

MATERIAL: 6063-T6 Aluminum Alloy and Temper Retainer
WIDTH: 12”
HEIGHT: 1/2”
LENGTHS: 36″, 48″, 72″, and 96″

Finishes

256x6A: A – Mill Finish Aluminum
256x6BSP: BSP – Black Suede Powder Coat Aluminum
256x6D: D – Dark Bronze Anodized Aluminum

Ratings

Barrier-Free (ADA): Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 – Overall height is no greater than 1/2″
BHMA Certified: Tested for performance with regards to the requirements in ANSI/BHMA A156.21 – Thresholds
Fire Rated: Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies

Brand	Pemko
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length	36", 48", 72", 96"
Width	12"
Height	1/2"
ANSI/BHMA Standard	ANSI/BHMA A156.21
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	Up to 3 Hours with metal doors; 90 minutes with wood doors
