Product Overview

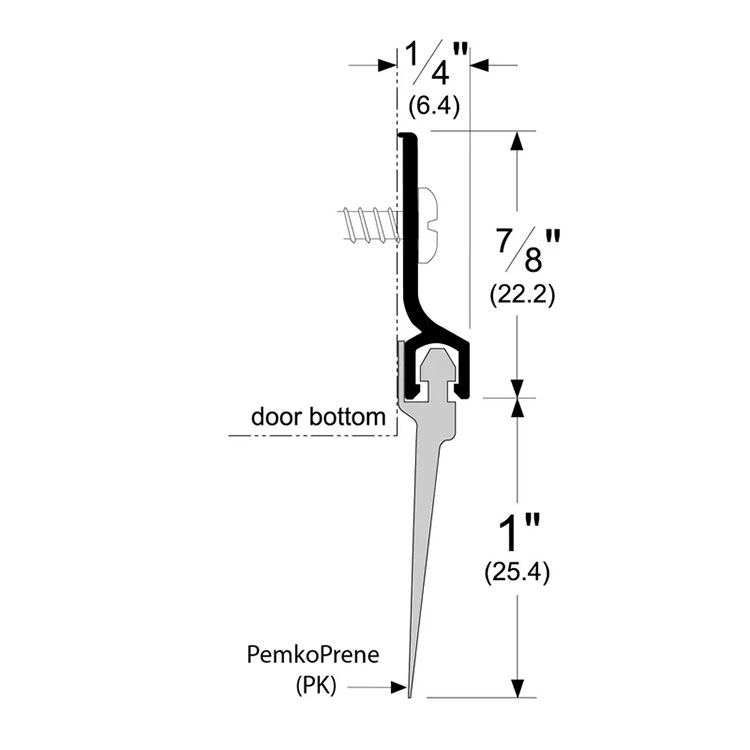

Pemko 307_PK Surface Plate Door Bottom Sweep with 1” PemkoPrene Insert
The 307 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent infiltration of moisture, fire, smoke, sound, and light. This door sweep features a PemkoPrene seal and is fire and smoke rated. It can be used to seal up to a 1″ gap between the door and threshold or floor surface. The sweep is surface mounted to the face of the door and comes with installation instructions and screws.
- Slotted holes for easy adjustment
- Recommended compression of gasket is 1/16″
- Seal up to a 1″ the gap between the door and threshold or to the floor surface
- Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
Finishes
- 307APK: A – Mill Finish Aluminum with PemkoPrene insert
- 307BSPPK: BSP – Black Suede Powder Coat with PemkoPrene insert
- 307DPK: D – Dark Bronze Anodized Aluminum with PemkoPrene insert
Ratings
- BHMA Certified
- Smoke Tested – UL1784
- Fire Rated – UL10C – Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Length | 36", 48" |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
