Pemko 307_V Door Bottom Sweep with Eco-V Vinyl Insert

Usually Ships: 1-2 Business Days

Economical vinyl door sweep
Seals against smoke, fire, air, sound, and weather
Fire-rated and smoke tested

Available Options:

Finish

Length

Clear

Quantity:

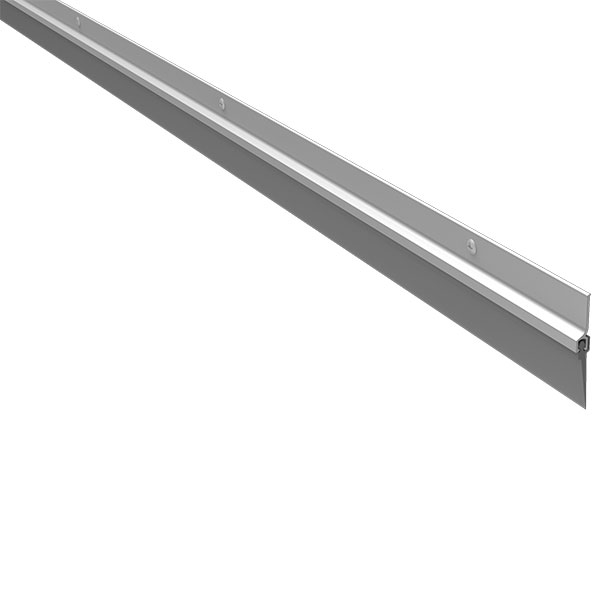

Pemko 307_V Surface Plate Door Bottom Sweep with 1” Eco-V Insert

The 307 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent infiltration of moisture, fire, smoke, sound, and light. This door sweep features an Eco-V (Vinyl) seal and is fire and smoke rated. It can be used to seal up to a 1″ gap between the door and threshold or floor surface. The sweep is surface mounted to the face of the door and comes with installation instructions and screws.

Slotted holes for easy adjustment
Recommended compression of gasket is 1/16″

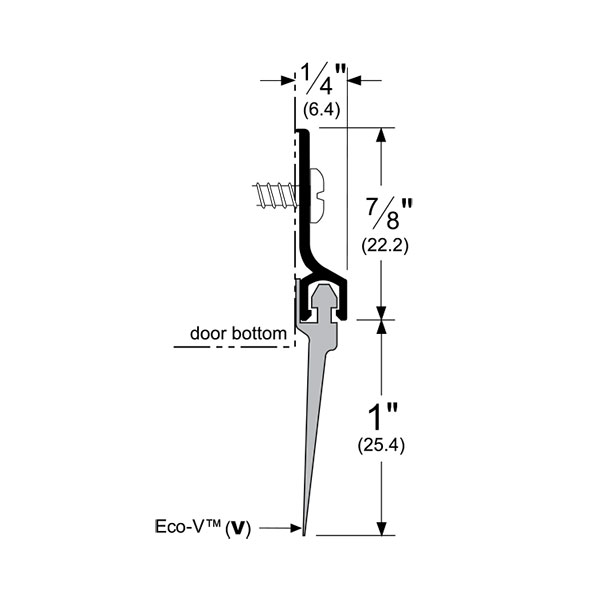

Seal up to a 1″ the gap between the door and threshold or to the floor surface
Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes

Finishes

307AV: A – Mill Finish Aluminum with Eco-V insert
307BSPV: BSP – Black Suede Powder Coat with Eco-V insert
307DV: D – Dark Bronze Anodized Aluminum with Eco-V insert

Ratings

BHMA Certified
Smoke Tested – UL1784
Fire Rated – UL10C – Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

Brand	Pemko
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length	36", 48"
Fire Rating	Fire Rated – UL10C – Positive Pressure
